DM-NAX-AUD-USB
The DM-NAX-AUD-USB is a DM NAX® encoder and decoder with support for USB audio and analog line-
level audio input and output. The device is housed in a versatile form factor that can be mounted in a
single-gang standard electrical box, under a table, or on a rack rail. An additional polycarbonate label is

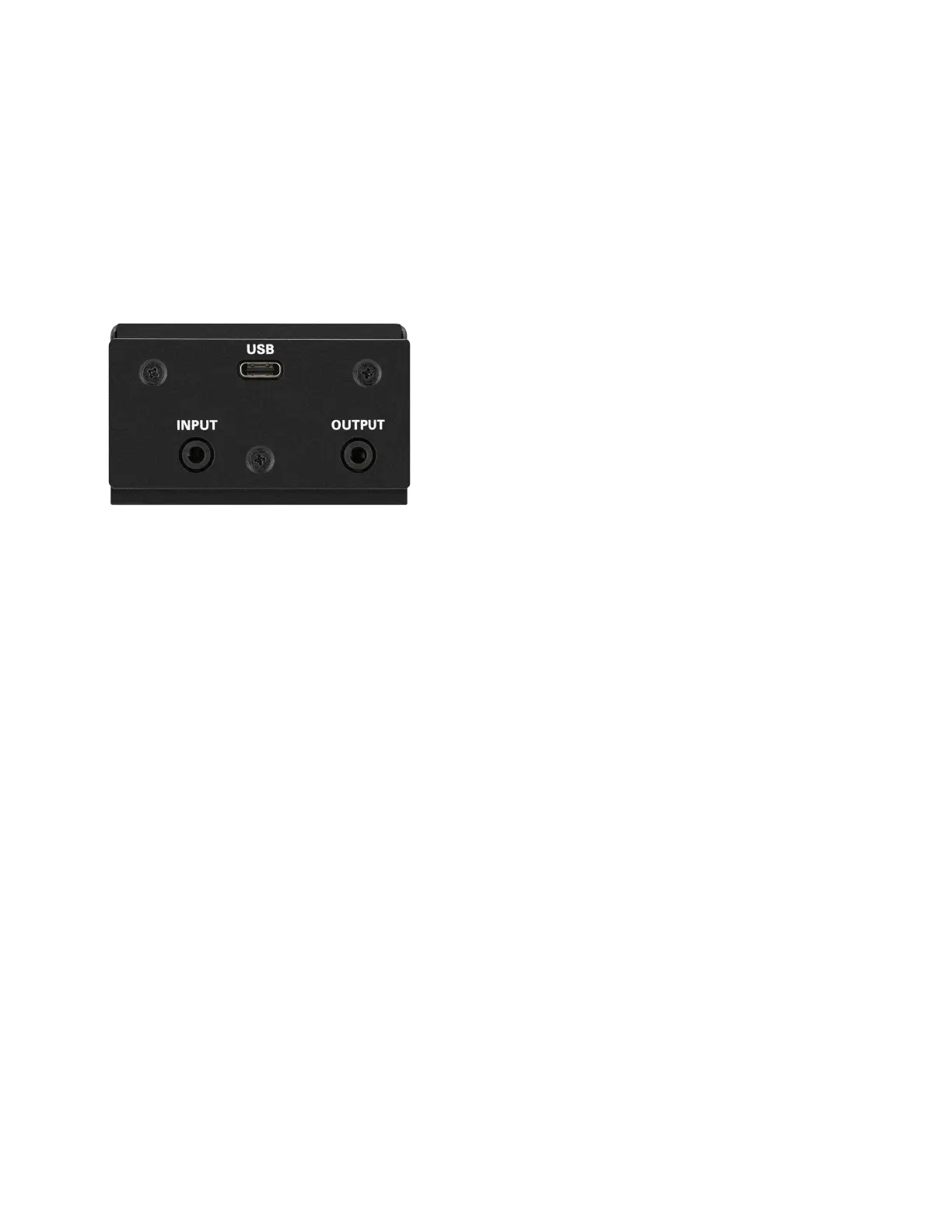

included with rotated text to make the front panel more legible in electrical box installations. Two 1/8 in.
(3.5 mm) TRS connectors for analog line-level audio input and output are also included on the front
panel. The rear panel of the device features an Ethernet connection for PoE, Audio over IP (AoIP), and
control.
l
USB Audio Class 1 (UAC1) device with bidirectional stereo USB audio support
l
Power over Ethernet (PoE) network powered
l
Line-level, unbalanced analog audio input and output via 1/8in. (3.5mm) TRS connectors
l
Mountable in a standard US electrical box, under a table, or on a rack rail via included hardware
l
Connects directly to a managed network to route to or from other DM NAX® and DM NVX®
devices
l
Interoperable with Dante® audio networking devices via AES67 compatibility
l
Streamlined configuration through a web interface
l
Seamless Crestron system integration with SIMPL Windows programming
USB Audio
A USB-C® connector is built-in to the front panel of the DM-NAX-AUD-USB, allowing for bidirectional
stereo USBaudio transfer at rates up to 24-bit/48kHz. This stereo signal can be output as a
DMNAXAoIPstream onto the network or as an unbalanced line-level analog signal from the local 1/8in.
(3.5mm) audio output connector.
Audio-over-IP
DMNAX takes audio distribution to a whole new level by putting it on the network. The
DM-NAX-AUD-USB sends and receives DMNAX and AES67 encoded audio over a standard IP network.
A single DMNAX system can handle audio distribution between 32 DMNAX devices and supports up to
256 audio output zones. DMNAX devices can seamlessly pull and distribute the audio from DMNVX
sources.
