Product Manual — Doc. 9045M DM NAX® • 71
DM-NAX-8ZSA Installation
Refer to the following sections to install the DM-NAX-8ZSA.
l
In the Box on page 71
l
Install the Device on page 72
l
Connect the Device on page 73
l
Apple® AirPlay® Setup on page 77
l
Spotify® Connect Setup on page 78
l
Observe the LED Indicators on page 78
l
Reset the Device on page 80

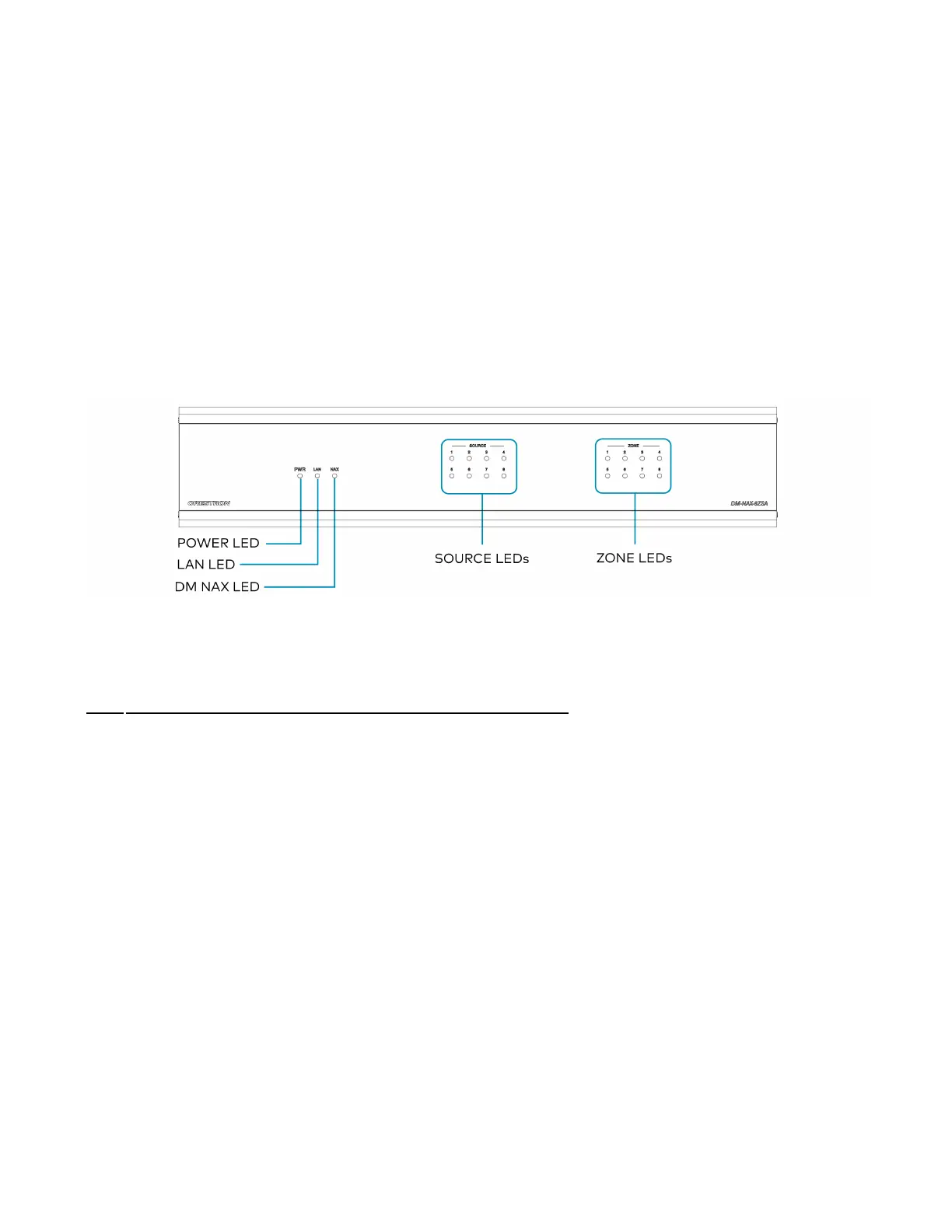

Front Panel
In the Box
Qty. Description
1 DM-NAX-8ZSA
Additional Items
2 Bracket, Rack Ear, 2 RU (2053799)
1 Power Cord, approx. 6.5 ft (2 m) (2014835)
1 Cable, CAT6, RJ45-to-RJ-45, approx. 5 ft (1.5 m) (2036196)
16 Connector, 2-Pin (2012361)
2 Connector, 4-Pin (2003576)
3 Connector, 5-Pin (2003577)
6 Screw, 4B x 1/4 in., Pan Head, Phillips (2007195)
To Next Page
