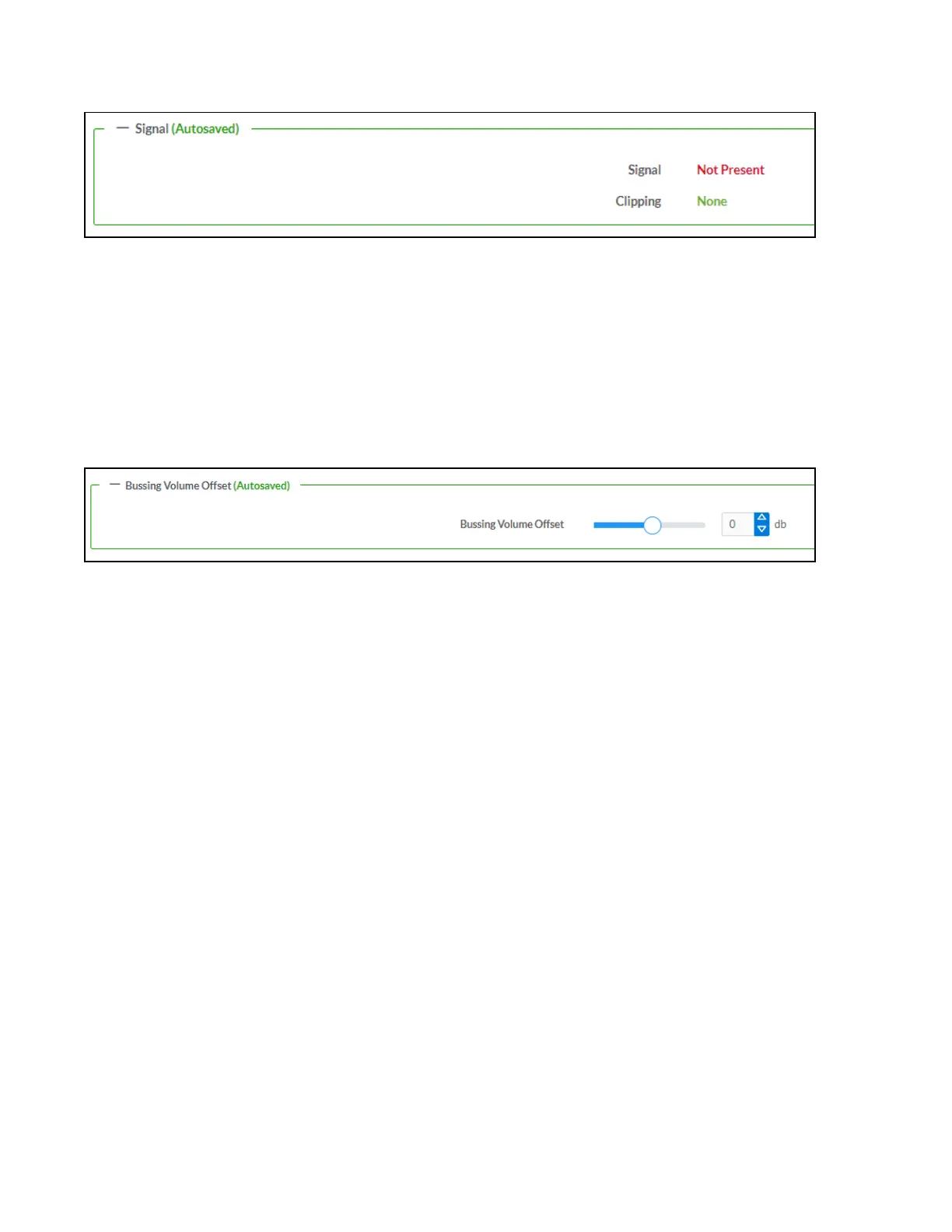

Signal
The Signal section is a read-only field that displays the Signal and Clipping status of the zone output.
l
If an output signal is present but not clipping, Signal will display Present in green and Clipping will
display None in green.
l
If an output signal is present and clipping, Signal will display Present in green and Clipping will
display Present in red.
l
If no output signal is detected, Signal will display Not Present in red and Clipping will display None
in green.
Bussing Volume Offset
Bussing Volume Offset is an additional level compensation applied to the zone relative to any other
zones it is grouped with via the Bussing feature.
To set the bussing volume offset, do one of the following:
l
Move the Bussing Volume Offset slider to the right to increase or to the left to decrease the
offset.
l
Click the db arrows to increase or decrease the offset. Values range from -12dB to 12dB,
adjustable in increments of 1dB.
l
Manually enter a value in the Bussing Volume Offset field.
