Application
This section shows DM-NAX-16AIN device in a multizone application.

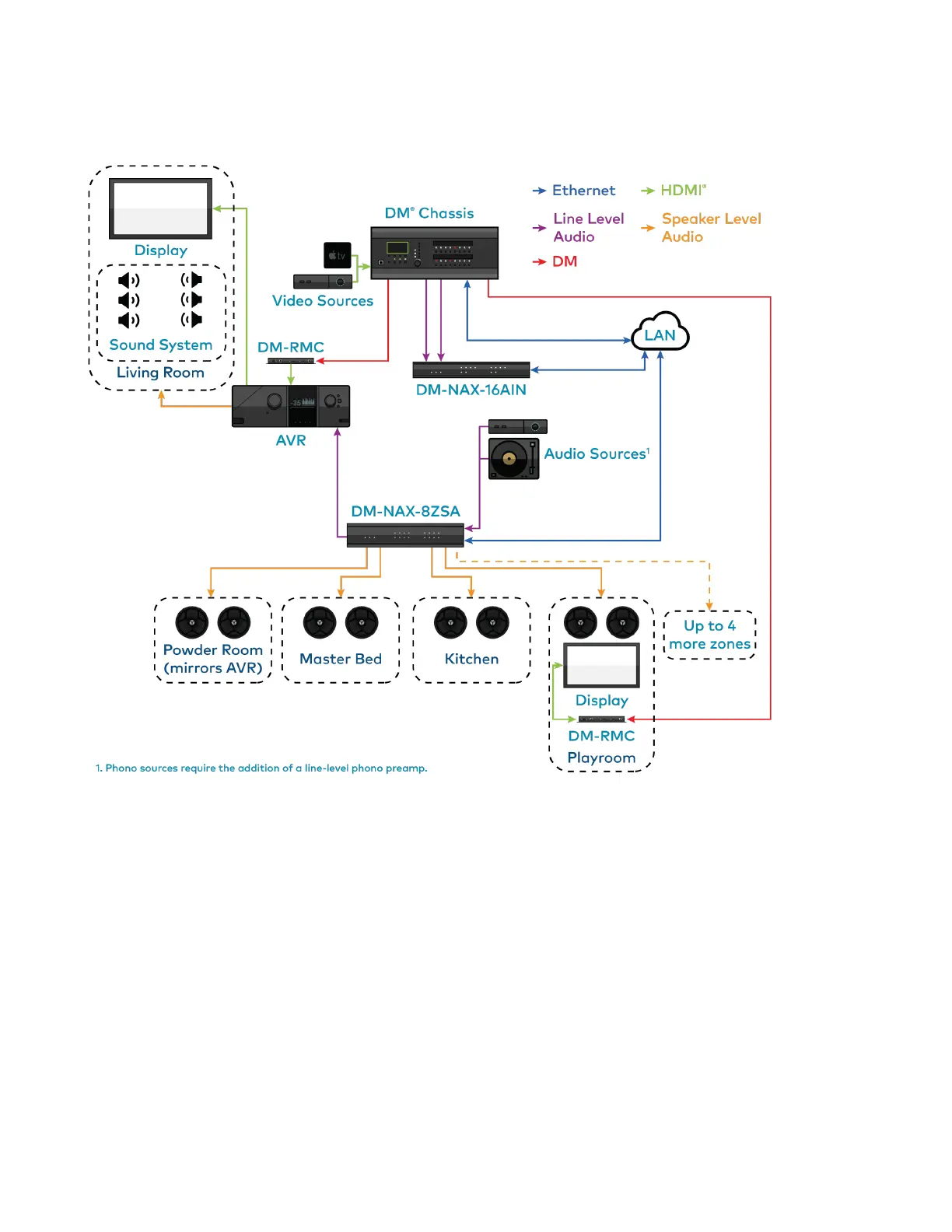

This application diagram shows the following setup:
l
Up to eight zones of amplification and audio distribution
l
Local line level input
l
Local line level output to an AVR mirroring a zone of amplification
l
Available music streaming services on up to eight DM NAX zones
l
The DM-NAX-16AIN is used to transmit audio from the DM chassis’ video sources onto the DM
NAX network for routing to the non-video zones on the DM-NAX-8ZSA
