68 • DM NAX® Product Manual — Doc. 9045M

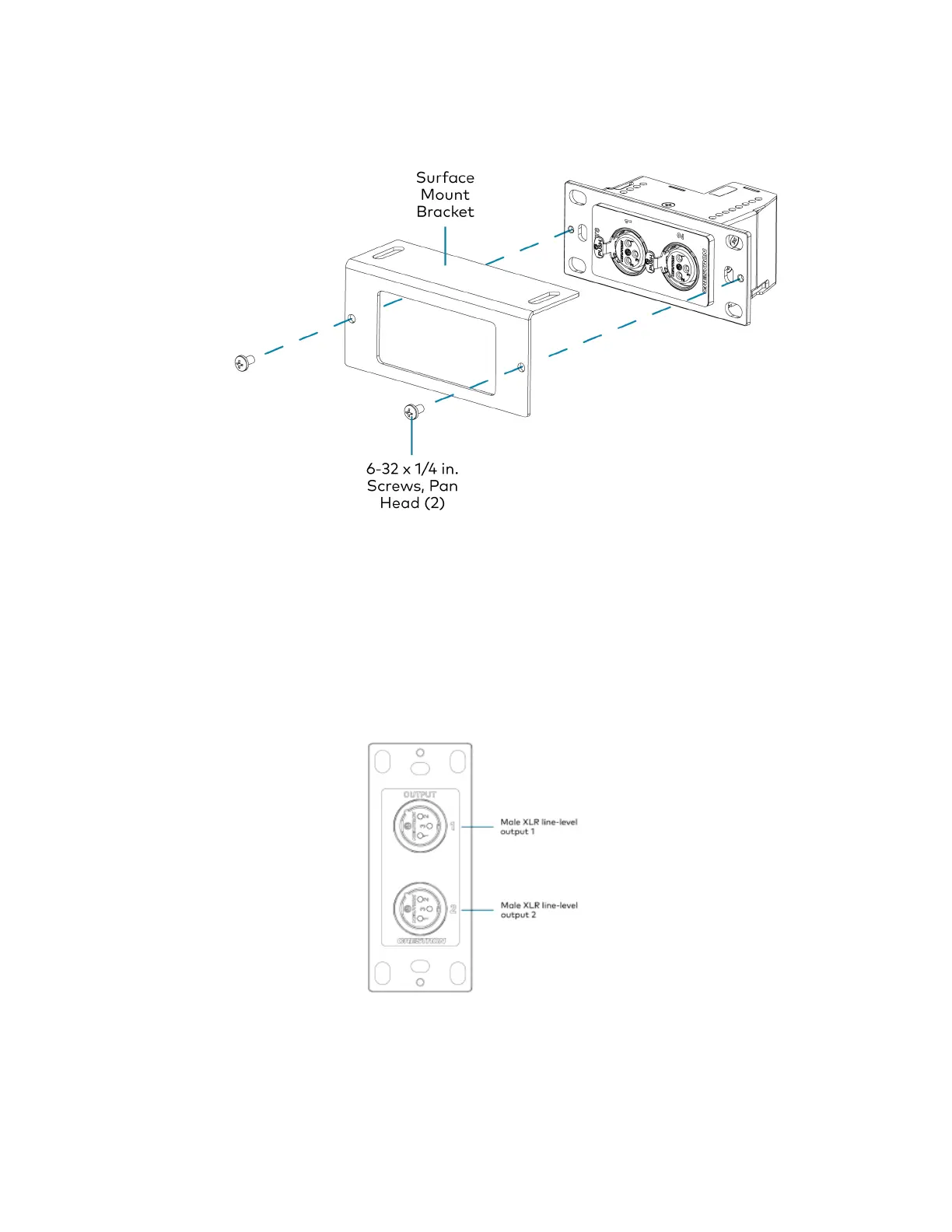

2. Connect the wall plate to the mounting bracket using a Phillips screwdriver and two SEMS screws
6-32 x 1/4 in. (not included).
3. Secure the mounting bracket to a flat surface using the appropriate mounting screws (not
included).
Connect the Device
Make connections to the front and top of the DM-NAX-2XLRI-1G as described below.
Front Panel
