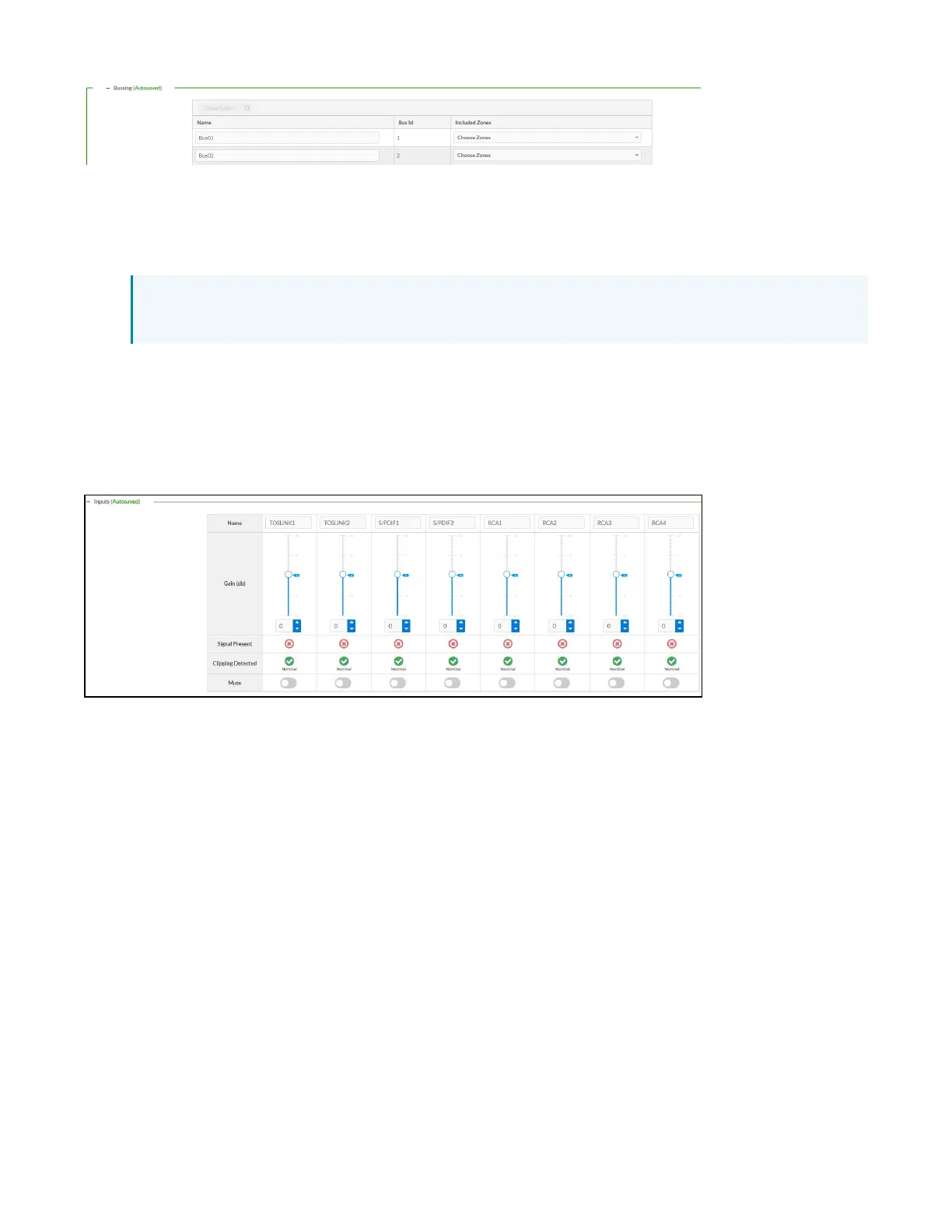

Configure Bussing
1. If needed, enter a friendly name for each bus in its Name field.
2. Select any number of zones from the Included Zones drop-down menu.
NOTE: Each zone can be a member of only one bus. Any zones that are already a member of
another bus will not be shown in the Included Zones drop-down.
Inputs
The Inputs menu is used to configure Name, Compensation, and Mute attributes of the available analog,
digital, and media streaming inputs on the DM-NAX-4ZSP.
A total of 12 inputs are available on the DM-NAX-4ZSP, including the 8 physical input connectors on the
device's rear panel and the 4 internal media players used for media streaming services.
Configure Inputs
1. If needed, enter a friendly name for each input in its Name field.
2. To set a level compensation adjustment for a given input, do one of the following:
l
Move the Compensation slider up to increase or down to decrease the compensation.
Compensation increases or decreases the level of the incoming audio signal on any of the
physical inputs on the device's rear panel. Compensation is not available for any of the
internal media players.
l
Click the db arrows to increase or decrease the compensation. Values range from -10dB to
10dB, adjustable in increments of 1dB.
l
Manually enter a value in the Compensation field.
3. To mute the signal from the corresponding input, click the Mute button. To disable the mute, click
the Muted button. By default, Mute is disabled.
Monitor the device's input signals using the text indicators in the Signal Present and Clipping Detected
columns:
