Signal

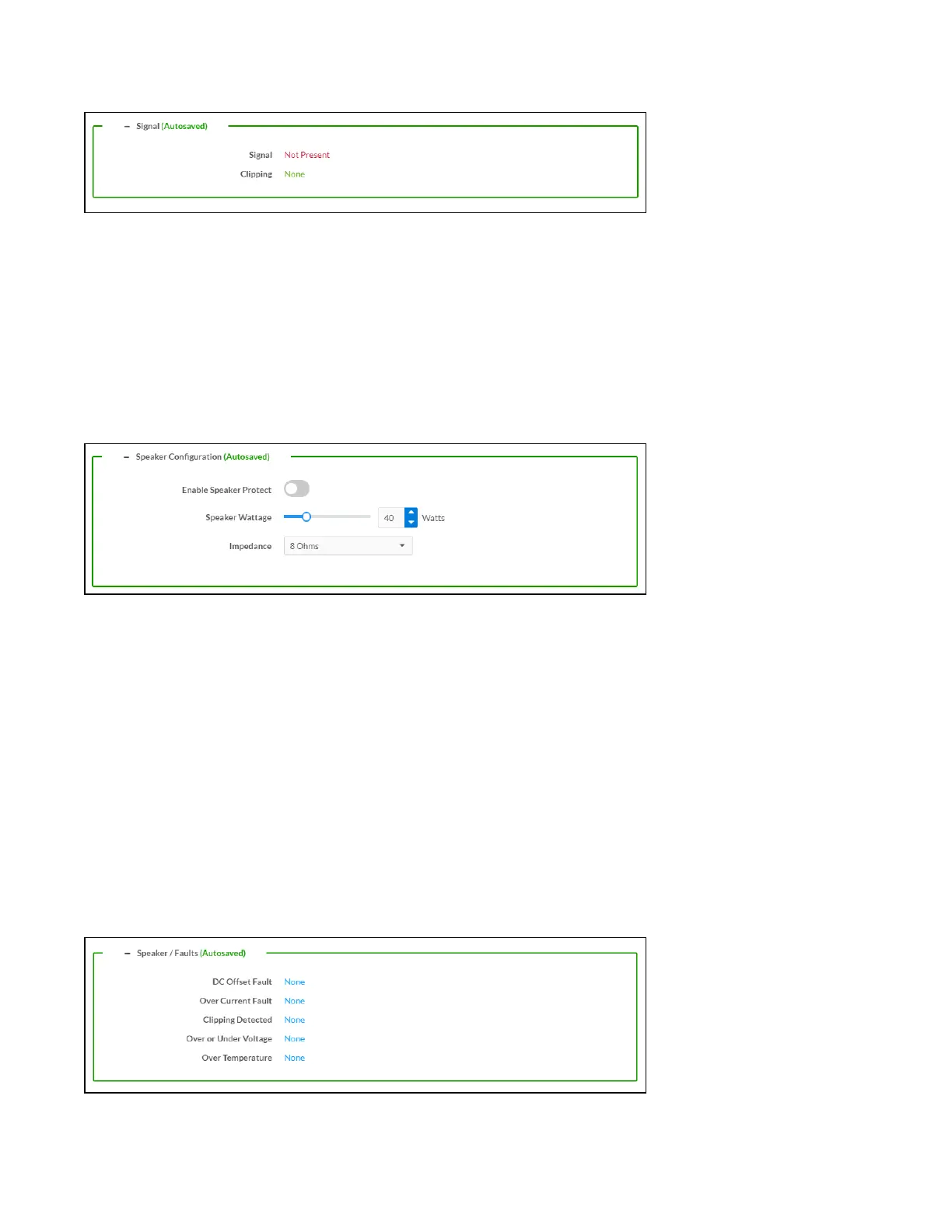

The Signal section is a read-only field that displays the Signal and Clipping status of the zone output.
l
If an output signal is present but not clipping, Signal will display Present in green and Clipping will
display None in green.
l
If an output signal is present and clipping, Signal will display Present in green and Clipping will
display Present in red.
l
If no output signal is detected, Signal will display Not Present in red and Clipping will display None
in green.
Speaker Configuration
1. Set the Enable Speaker Protect toggle to the right position to enable speaker protection for the
zone output. Set the toggle to the left position to disable speaker protection. By default, Enable
Speaker Protect is set to the left position.
2. To set the maximum output wattage, do one of the following:
l
Move the Speaker Wattage slider to the right to increase or to the left to decrease the
maximum peak amplifier wattage that can be output to the speaker.
l
Click the Watts arrows to increase or decrease the maximum peak amplifier wattage that
can be output to the speaker. Values range from 5W to 150W, adjustable in increments of
1W.
l
Manually enter a value in the Speaker Wattage field.
3. Select the impedance of the speaker on a selected zone from the Impedance drop-down menu.
Values are 4 Ohms, 8 Ohms, and Bridged.
Speaker Faults
