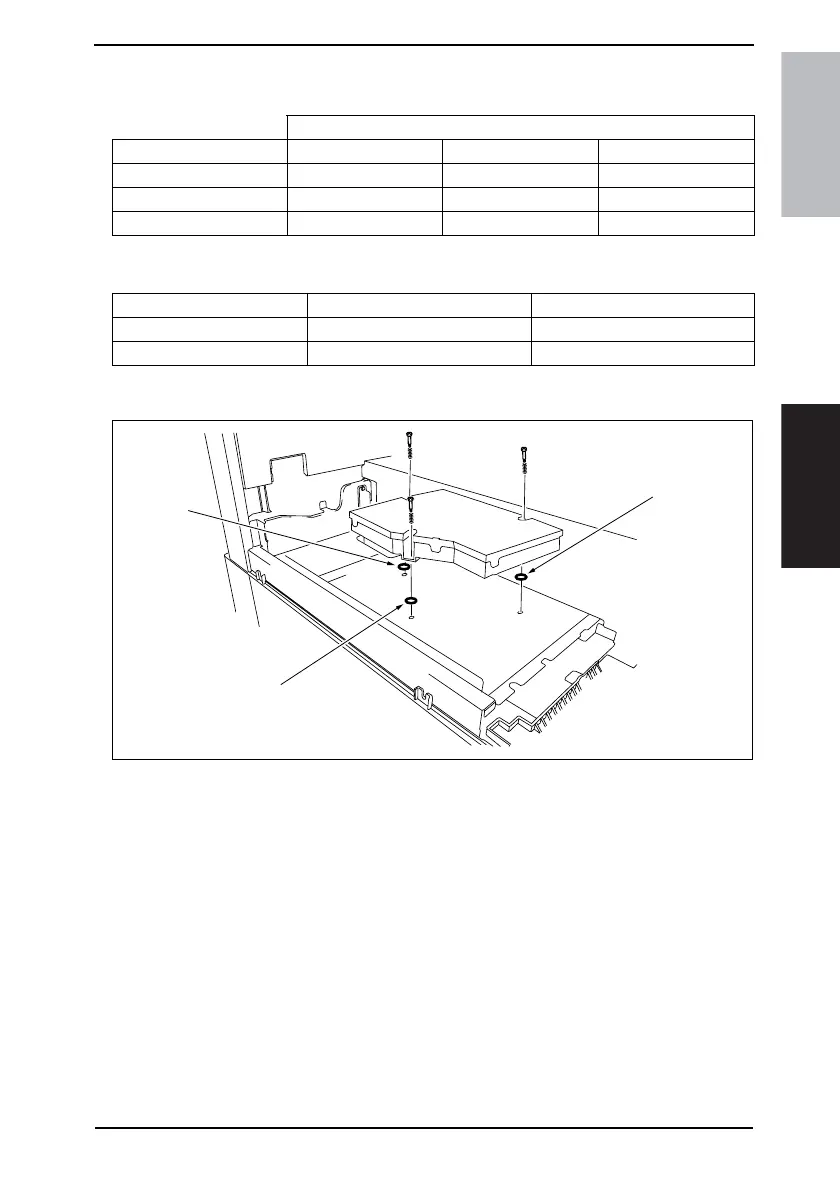

• When replacing the PH, install spacers according to the color of the labels affixed
to the PH.
• Spacers Used
• Should be screw installation position
Screw Position
PH label color A B C
Green label No spacer No spacer No spacer
Blue label No spacer 0.1 mm spacer 0.2 mm spacer
Yellow label 0.2 mm spacer 0.1 mm spacer No spacer
Part No. Spacer Color
0.1 mm spacer 4030-2053-01 Black
0.2 mm spacer 4030-2054-01 White
4040F2C659DA
[A]
[C]
[B]
