Field Service Ver. 1.0 Aug. 2005 3. Other
5
MT-501Maintenance
3.2 Disassembly/Assembly list (Other parts)
3.3 Disassembly/Assembly procedure

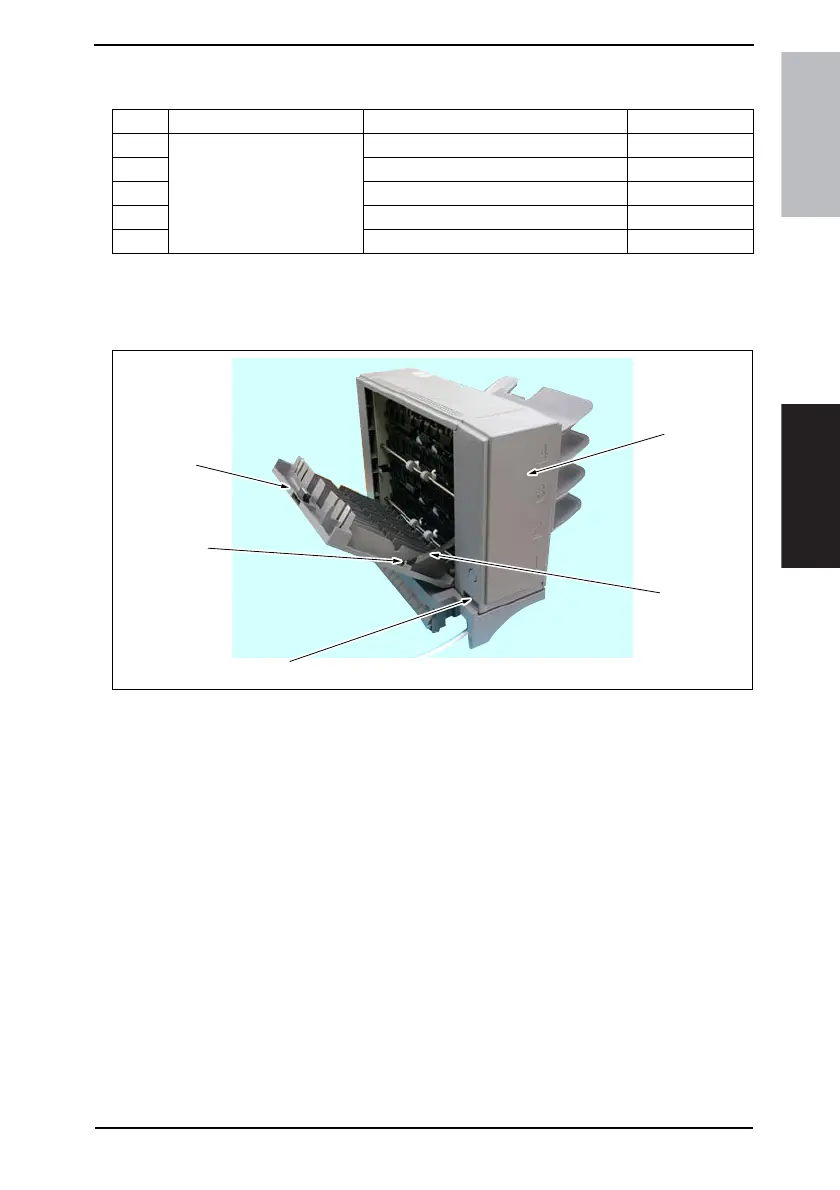

3.3.1 Rear Cover/Right Door
1. Remove the screw [1] and remove the Rear Cover [2].
2. Remove the screw [3], the stopper [4], and remove the Right Door [5].
No. Section Part name Ref. page
1
Exterior parts
Rear Cover
☞ 5
2Front Cover
☞ 6
3 Upper Cover
☞ 6
4 Right Door
☞ 5
5 Paper Output Tray
☞ 6
4510F2C504DA
[1]
[2]
[4]
[3]
[5]
