4. Other Field Service Ver. 1.0 Aug. 2005
16
SD-502
Maintenance

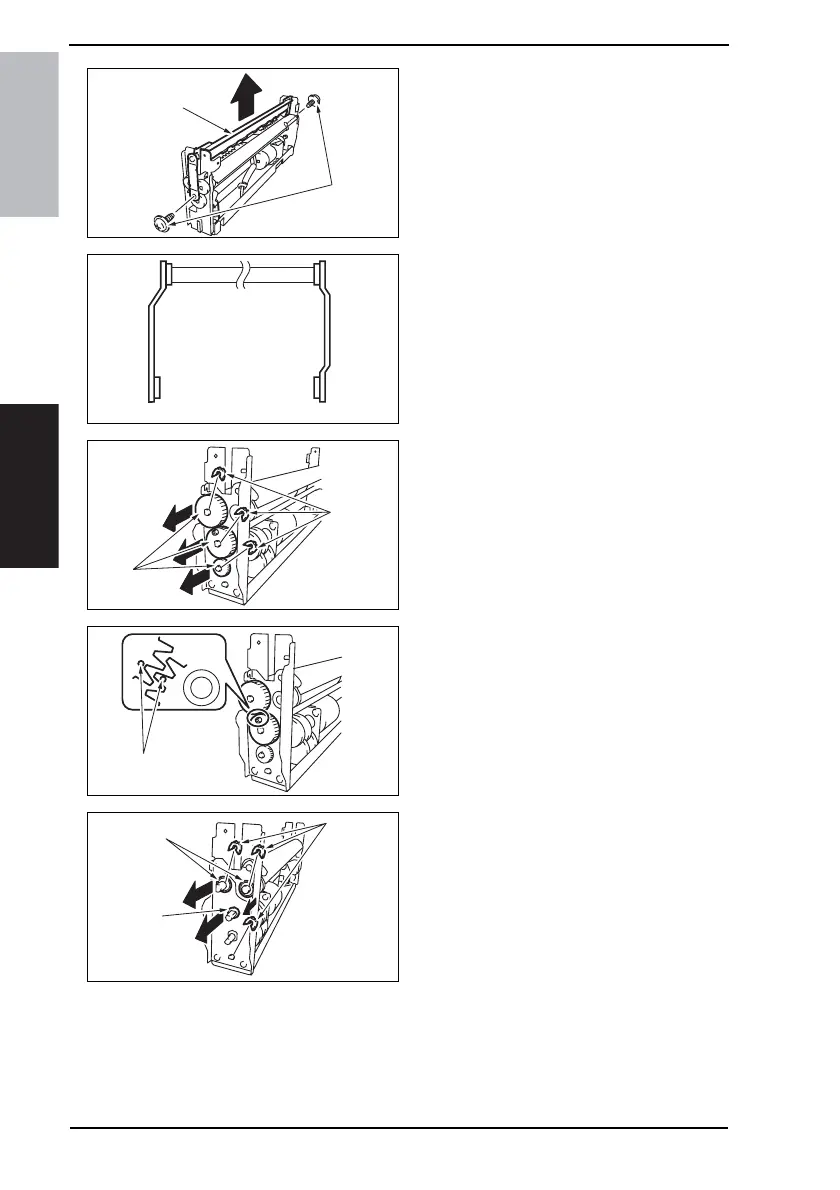

4. Remove two screws [5], and remove
the Chopper Assy [6].
• Install the Chopper Assy in the
direction shown in the left figure.
5. Remove three C-rings [7], and
remove three gears [8].
• Install the gear so that the mark [9]
is aligned to the position shown in
the left figure.
6. Remove three C-rings [10], and
remove two bearings [11].
7. Remove the bushing [12].
4511F2C536DA
[5]
[6]
4511F2C537DA
Rear Front
4511F2C538DA
[7]
[8]
4511F2C539DA
[9]
4511F2C540DA
[10]
[12]
[11]
To Next Page
