460 Hog 4 Operations Manual

28.4.2 WYSIWYG Configuration

To configure WYSIWYG:

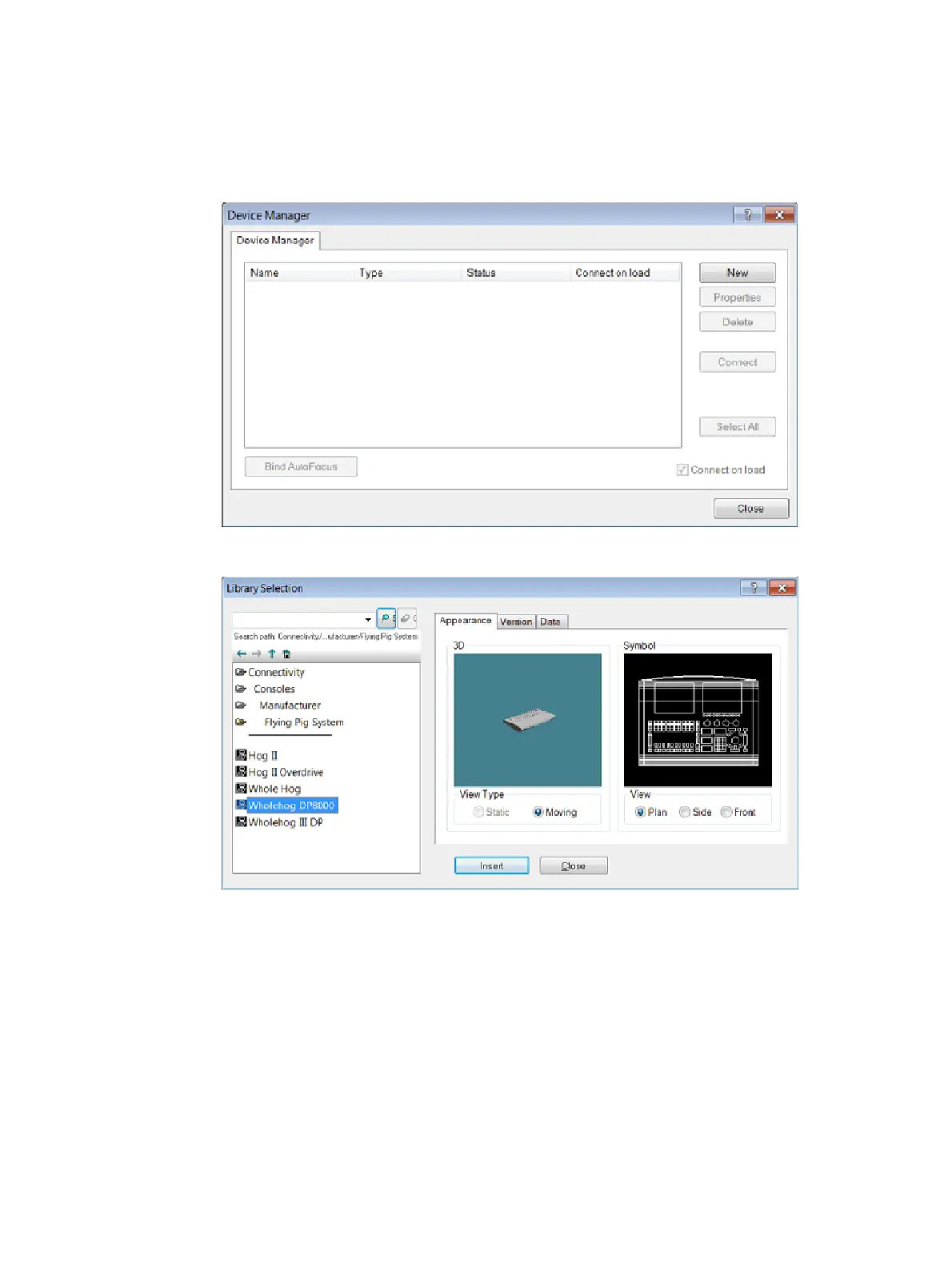

1. In WYSIWYG open the Device Manager: Live → De vice Manag er

2. Click on New to add an additional device. Select Wholehog DMX Processor as the new

device:
