Kayenne/Karrera/GV Korona
User Manual
253
Select the Device to Control
1 Enable the DEV button on the Source Display.
2 Press the Source Select button for the device you want to control.
3 Use the transport control buttons to play video.
Delegate a Source for Device Control
Once delegated, the device under control cannot be changed by source selection. A ‘D:’ is
displayed in the Delegation button of the Status Display.
1 Turn on the
DEV button.
2 Touch and hold the
Delegation button on the Status Display (pressing and holding the
button also displays the row and source selected).
3 Press the Source Select row button for the device you want to delegate and control.
Router Interface Operation
Introduction
The GV Switcher system can interface with an external routing system. A routing system
connects a router source (router input) to a router destination (router output). Changing the
router source sends a different signal to the destination (called a take). A router destination
can in turn be connected to a GV Switcher input and be configured as a routed GV Switcher
source (called switcher source in this discussion and in the GV Switcher menus). The router
acts as a pre-selector for the switcher source, and so increases the number of inputs
available to a button on a GV Switcher system bus.

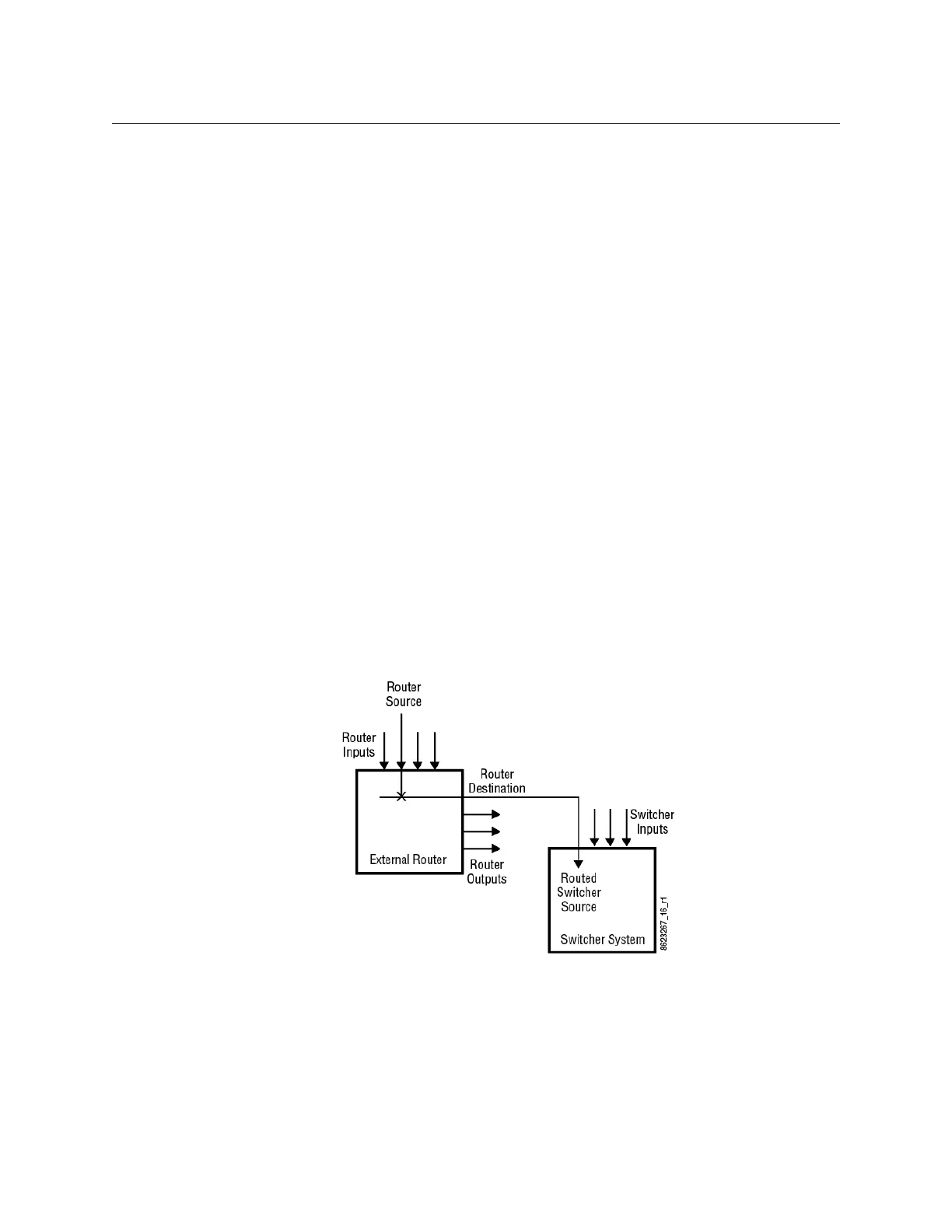

Router Source, Destination, and Routed GV Switcher Source
Router signal switching is non-deterministic, as compared to source selections performed
on a production switcher. For this reason, it is better to choose the desired router source in
advance, then switch it on-air using switcher controls, rather than select a different router
source while it is on-air.
An external router can be configured into levels, to allow the switching of multiple signals
simultaneously. For example, video signals can be organized on one level, and key signals
on another. By specifying both levels when giving a router take command, both the video
To Next Page
