GRASS VALLEY KAYENNE User Manual

Video Mix/Effects
Set a Pattern Mix
86
You can ‘Grab’ both a video and key frame simultaneously by selecting either the Grab
V&K 1
or Grab V&K 2 button, located below each Frame Store page, or you can select a
Grab button for any of the four Video/Cutout Frame Stores.
Once you grab fill and key images in Key Store, they are available for the selected key
source.

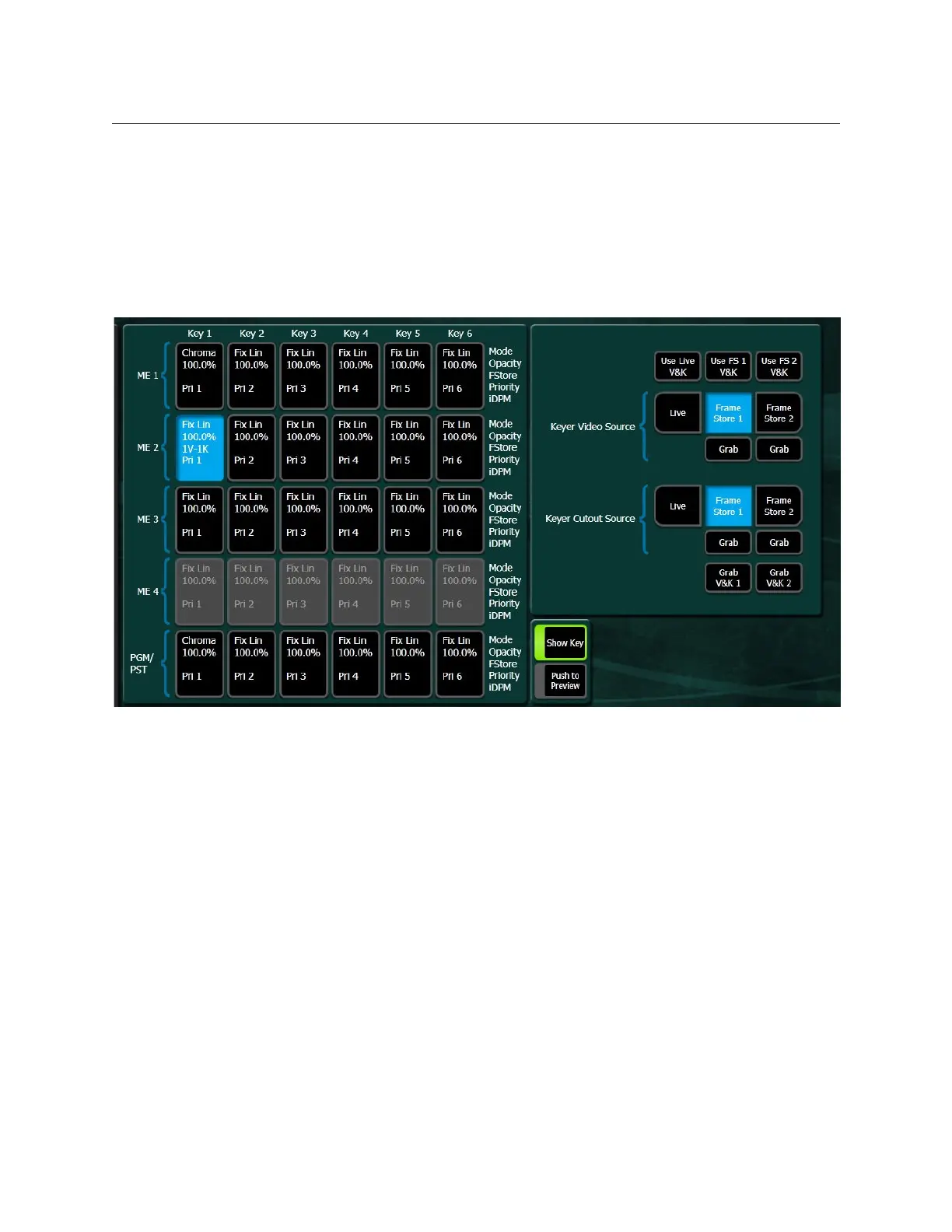

Grab a Keystore image:
1 Select
Keyer, Keystore.
2 Select a keyer for the Key Store.
3 Select either the
Use Live V&K, Use FS 1 V&K, or Use FS2 V&K to select the Video and
Key source image, or
a Select the Keyer Video Source for the fill.
b Select the Keyer Cutout Source for the key cut.
Set a Pattern Mix
You can combine the complex wipe pattern generators (P1 and P2), to create a wide variety
of customized wipes.
1 Double press the
Wipe 1 button in the Transition area. This selects Wipe 1 as the next
transition type, and also opens the Wipes menu with PRI Wipe 1 delegated for control.
