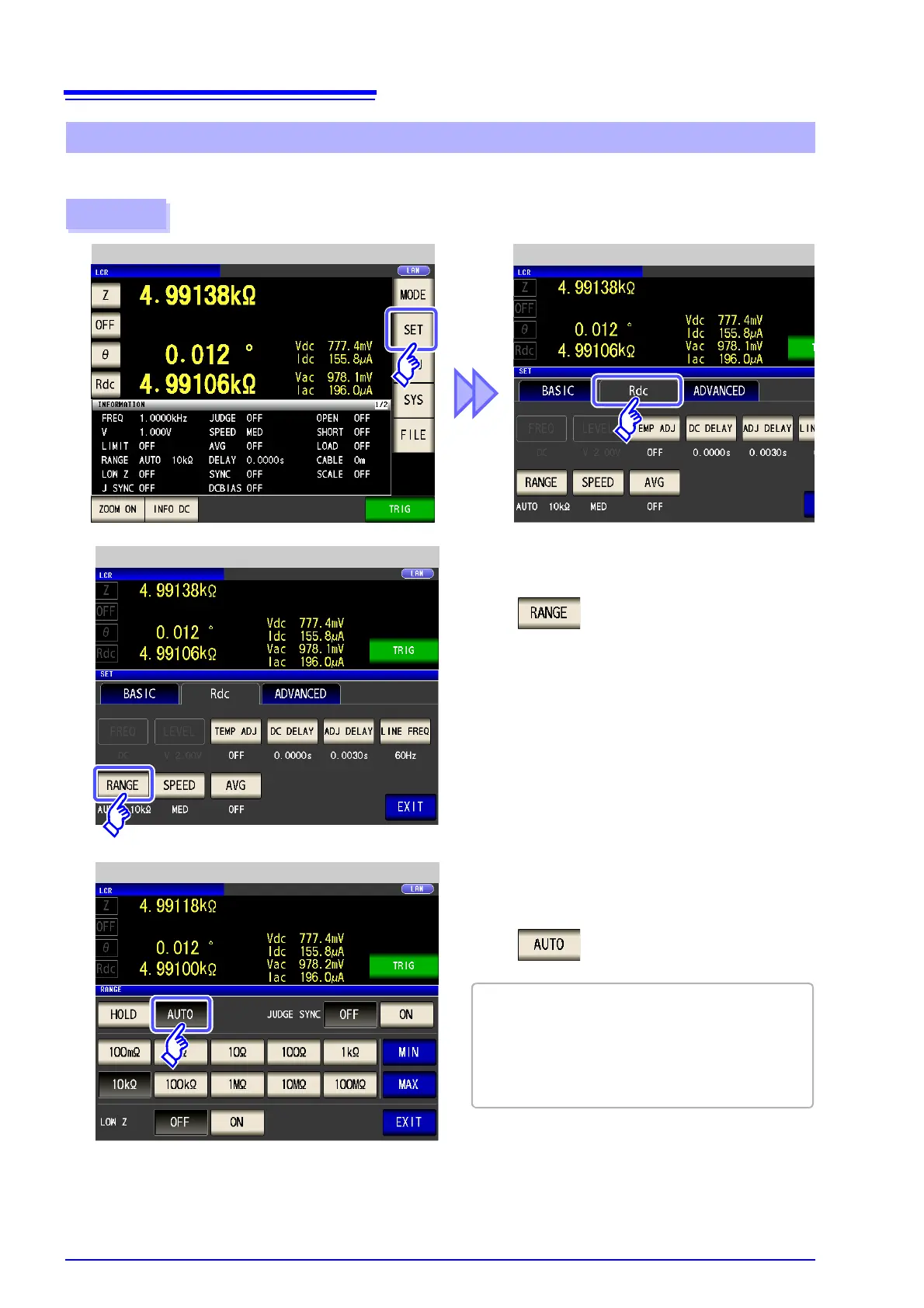

4.3 Setting DC Resistance Measurement
90
The following procedure describes how to limit the AUTO ranging range.
AUTO range limit function
Procedure
LCR Measurement Screen
1
LCR Basic Settings
Press .
2
LCR Basic Settings
Press .
3
If the instrument is being used outside the limits of its
specification, the suitable range may not be set in
auto ranging function. In this case, check the accura-
cy assured ranges in "14.2 Measurement Range
and Accuracy" (p. 342) and then change the test con-
ditions.
Range Setting
To Next Page
