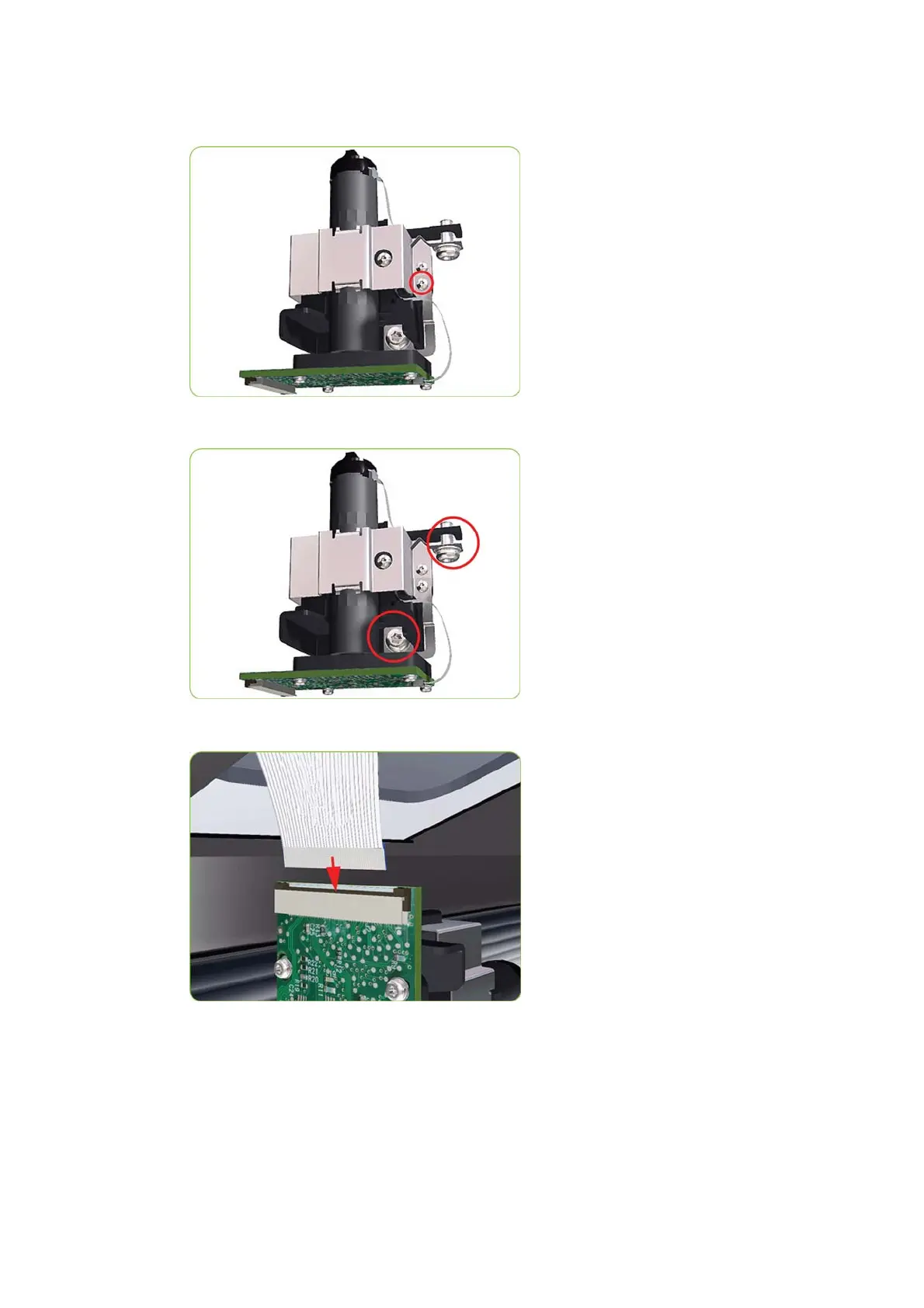

3. Position the Attachment Screw Retainer on the OMAS and secure it with the T-8 attachment screw
provided with Center Platen.
4. Check that the two T-20 attachment screws are correctly positioned in the Attachment Screw Retainer.
5. Position the OMAS under the printer and connect the large ribbon.
