Chapter 8 Maintenance and Inspection8.5 Grease Supply
274
Procedures to Supply Grease on X, Y and Z Axes
In this section, explains how to supply grease to each axis.
In this instruction, explanation is conducted using A Type 3-Axis Pulse Motor 200 Stroke Type (Model
Code: TTA-A3-20-20).
<Required Tool>
● Grease Gun
(Applicable for diameter 3.5 grease nipple hole, nozzle outer diameter 7.5mm or below, nozzle
length 70mm or more)
*: The procedures to supply grease are in common for all the sizes.
*: For C Type, the structure of the X-axis differs from A Type. Refer to procedures for grease supply
on the Y-axis of A Type for how to supply grease to X-axis of C Type.

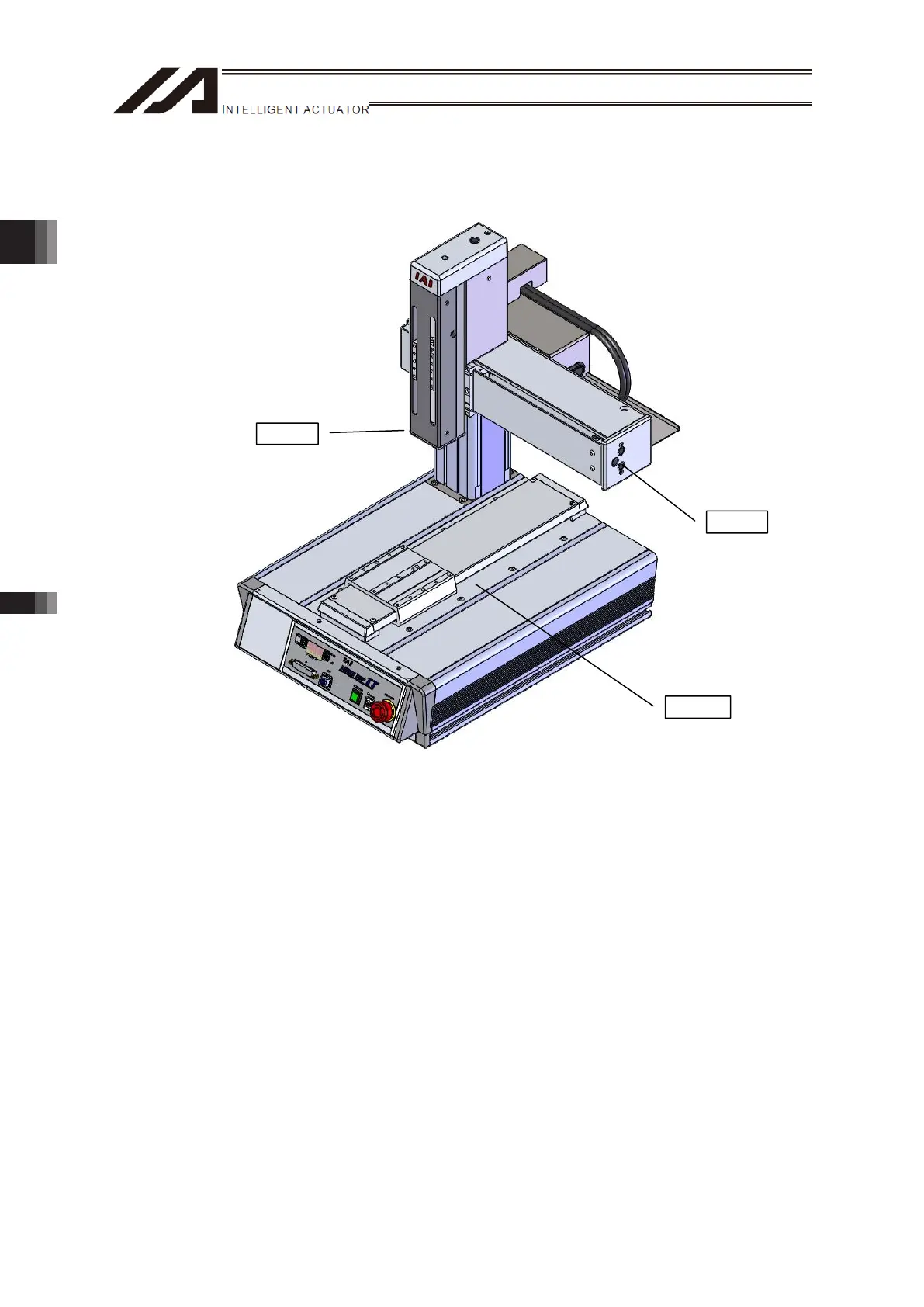

Z-axis
Y-axis
X-axis
