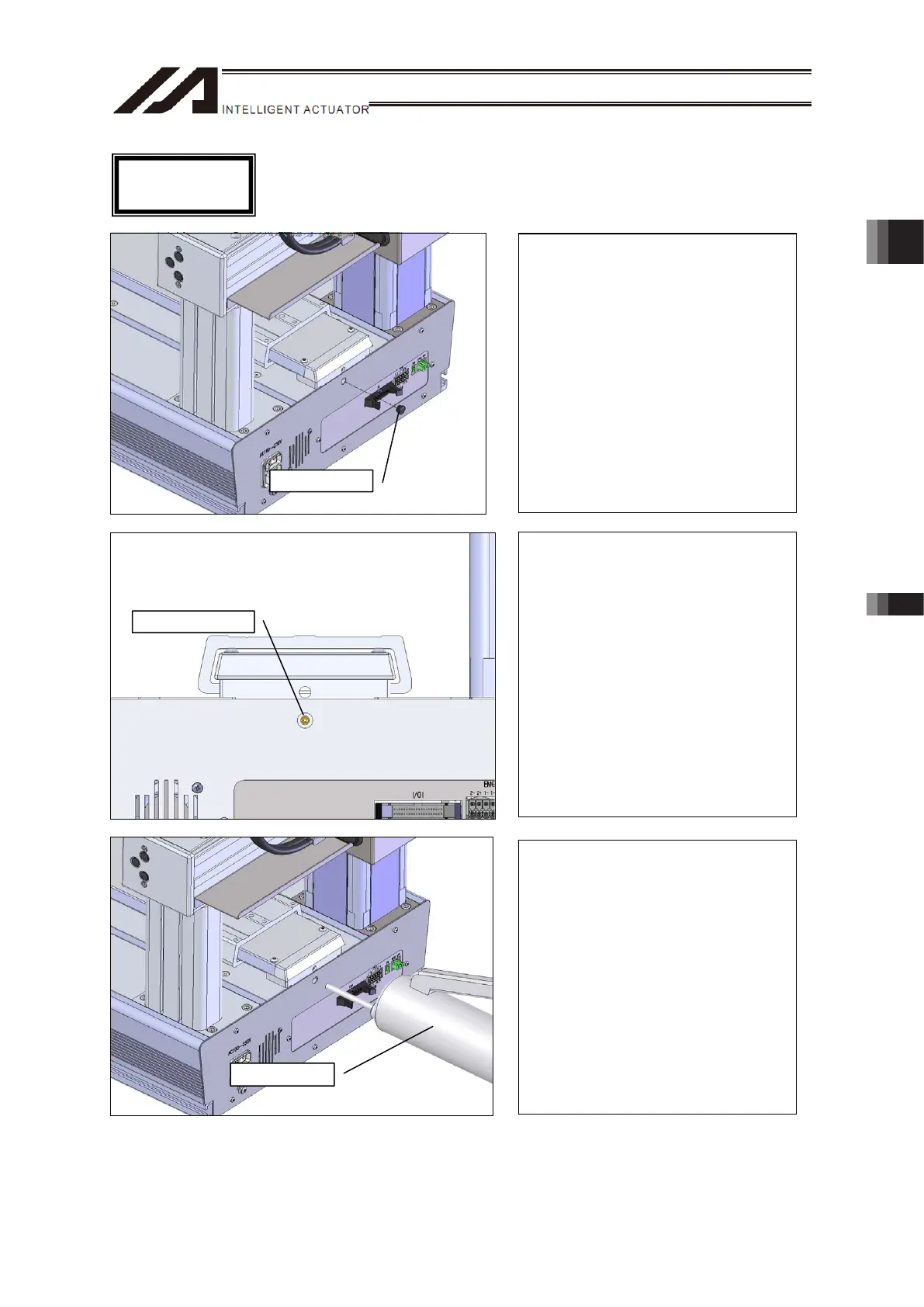

Chapter 8 Maintenance and Inspection 8.5 Grease Supply
275
X-Axis
[X-axis Step (1)]
Take out the rubber cap on the back
of the TTA main unit.
[X-axis Step (2)]
Confirm the grease nipple on the X-
axis slider.
Supplying grease to this grease
nipple will grease up both guide and
ball screw.
[X-axis Step (3)]
Move the slider on the X-axis to the
stroke end and supply grease with
using a grease gun.
[Tool: Grease gun]
<Caution>
During supplying grease, hold the
slider or turn the servo on so the
slider will not move.
Rubber Cap
Grease Nipple
Grease Gun
