Chapter 8 Maintenance and Inspection8.5 Grease Supply
276

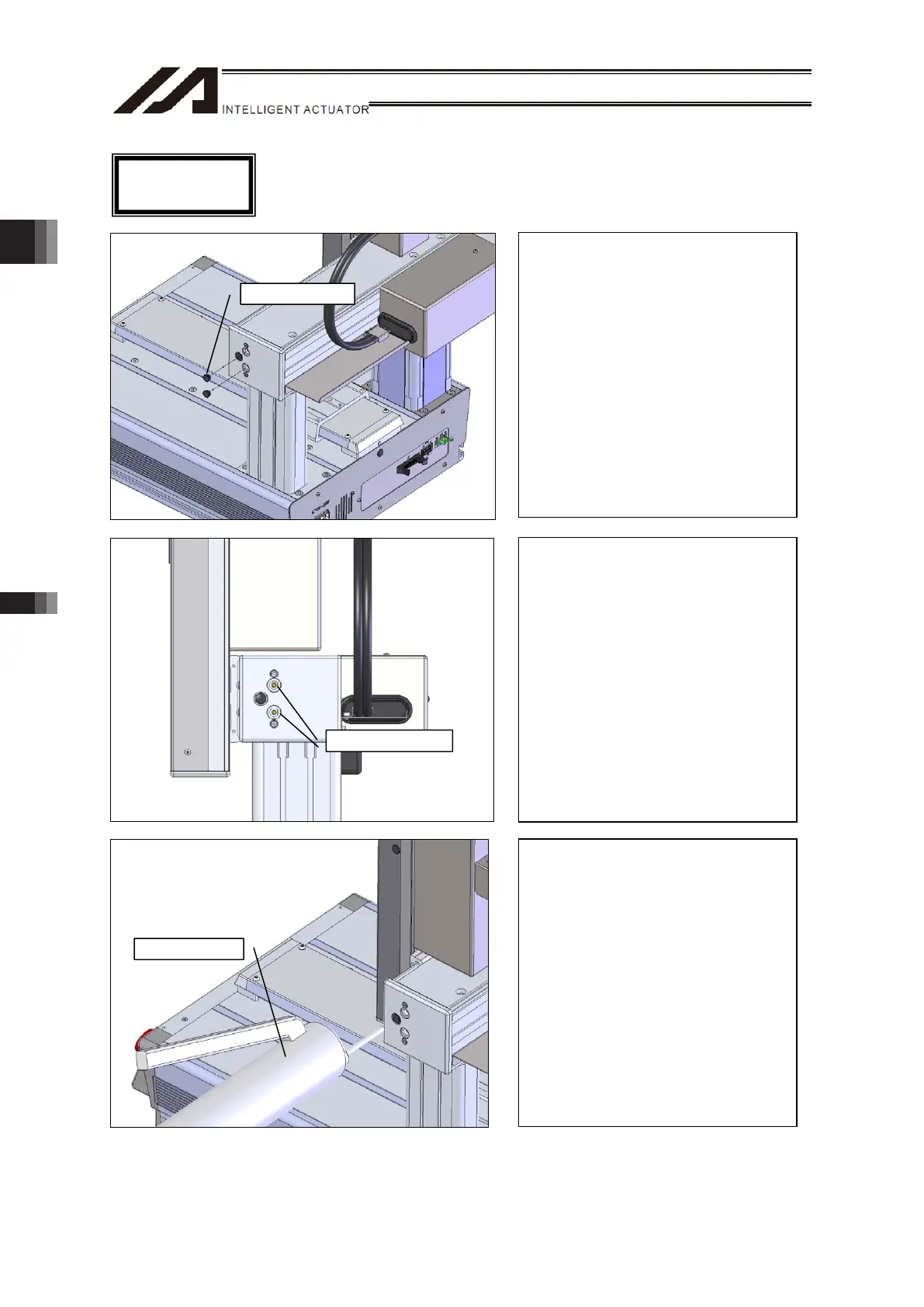

[Y-axis Step (1)]
Take out the rubber caps at the
positions on Y-axis front cover.
[Y-axis Step (2)]
Confirm the grease nipples on the Y-
axis slider.
Supplying grease to the top grease
nipple will grease up the top guide
and ball screw while supplying
grease to the bottom grease nipple
will grease up the bottom guide and
ball screw.
[Y-axis Step (3)]
Move the slider on the Y-axis to the
stroke end and supply grease with
using a grease gun.
[Tool: Grease gun]
<Caution>
During supplying grease, hold the
slider or turn the servo on so the
slider will not move.
Grease Nipples
Rubber Ca
s
Y-Axis
Grease Gun
To Next Page
