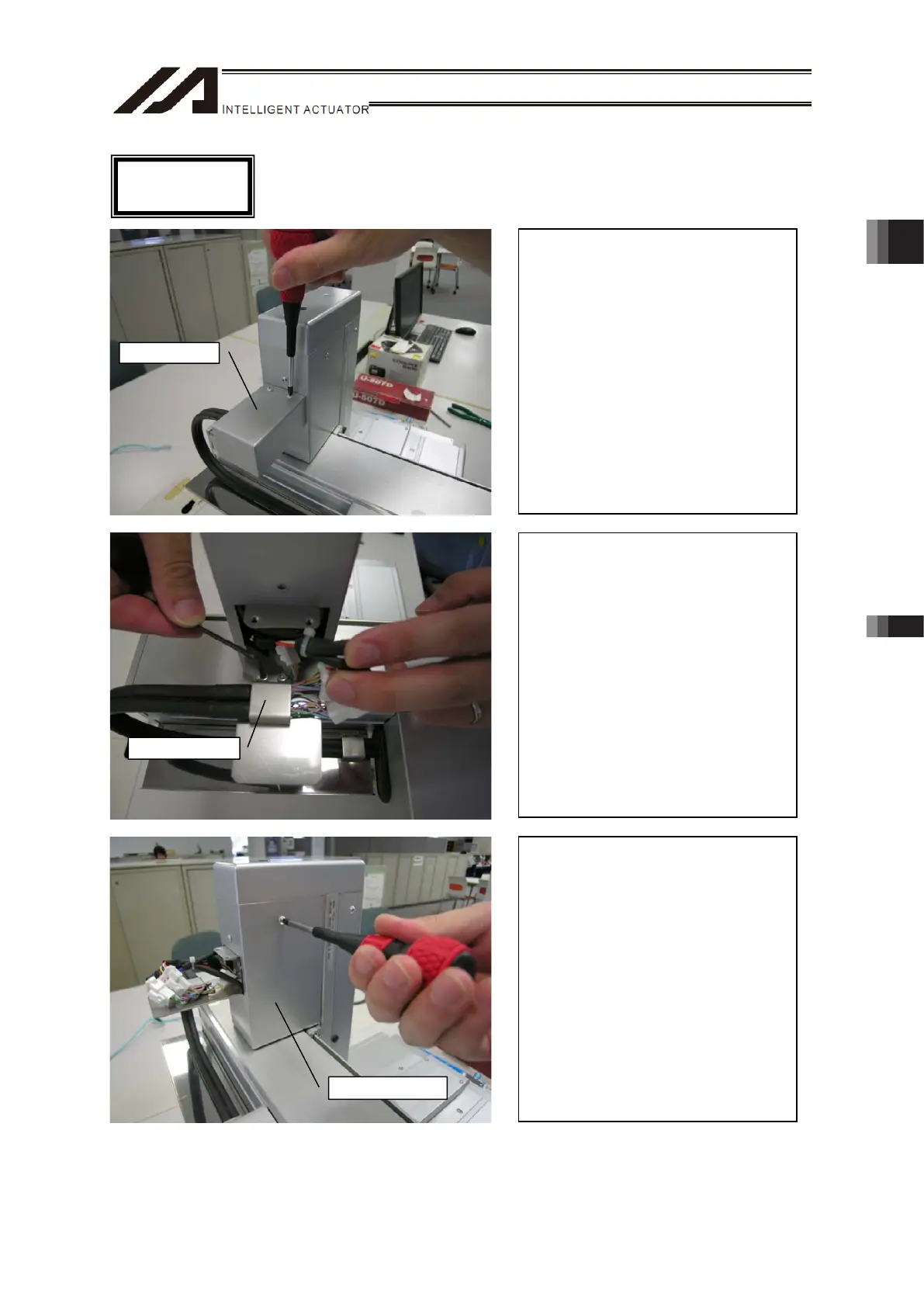

Chapter 8 Maintenance and Inspection 8.6 Replacement of Timing Belt
291
[Z-axis Step (1)]
Take off BOX Cover.
Remove the two screws on the top.
[Tool: Phillips screwdriver]
Z-Axis
BOX Cover
[Z-axis Step (3)]
Take off Motor Cover Z.
Remove the three screws on the right
and left sides and the back side.
[Tool: Phillips screwdriver]
[Z-axis Step (2)]
Remove the cable clamp.
Remove the two screws on the top.
[Tool: Hexagon wrench]
Cable Clamp
Motor Cover Z
To Next Page
