Chapter 8 Maintenance and Inspection8.6 Replacement of Timing Belt
292

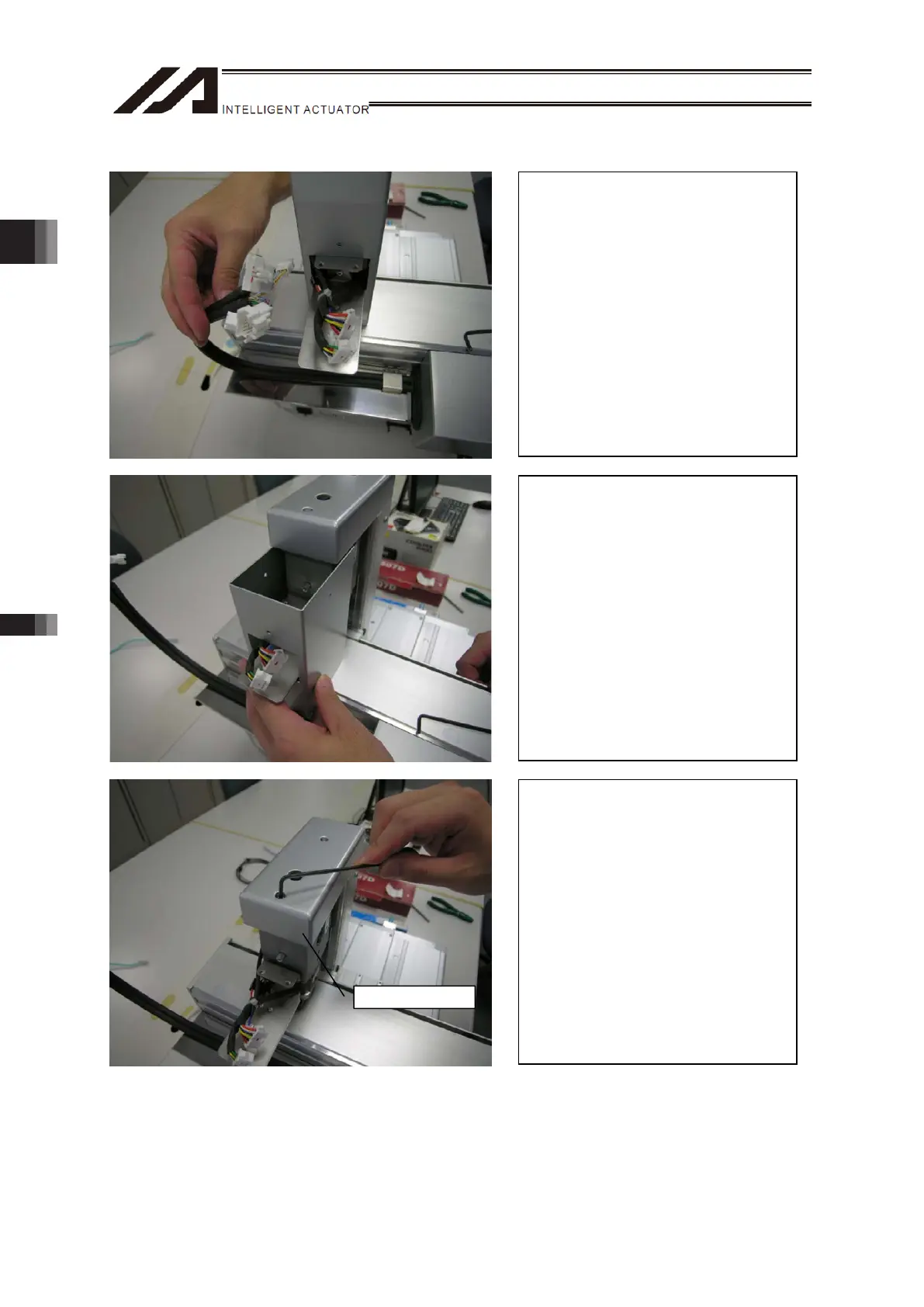

[Z-axis Step (4)]
Detach the cable connectors.
<Caution>
For the three-axis type, there is not
concern of wrong wiring as the
connectors match with each mating
end, but for the four-axis type, there
is a concern of wrong connection.
Apply markings before detaching in
order to avoid wrong wiring.
[Z-axis Step (5)]
Pull out Motor Cover Z to the rear
direction.
[Z-axis Step (6)]
Take off Pulley Cover Z.
Remove the two screws on the top.
[Tool: Hexagon wrench]
Pulley Cover Z
To Next Page
