Chapter 8 Maintenance and Inspection 8.6 Replacement of Timing Belt
295
<<Latest>>
A Type
● Pluse Motor Incremental Type / Pulse Motor Specifications Battery-less Absolute Type
[X-Axis]
Belt Code : 243-3GT-6
Tension : 58N Tension to Pass: 29N (±5N)
Tension Meter Setting: M = 2.5 W = 6 S = 77
[Y-Axis]
Belt Code : 318-3GT-6
Tension : 58N Tension to Pass: 29N (±5N)
Tension Meter Setting: M = 2.5 W = 6 S = 115
[Z-Axis]
Belt Code : 244-2GT-6
Tension : 32N Tension to Pass: 16N (±5N)
Tension Meter Setting: M = 1.3 W = 6 S = 80
● AC Servo Motor Battery-less Absolute Type
[X-Axis]
Belt Code : 225-3GT-6
Tension : 58N Tension to Pass: 29N (±5N)
Tension Meter Setting: M = 2.5 W = 6 S = 77
[Y-Axis]
Belt Code : 300-3GT-6
Tension : 58N Tension to Pass: 29N (±5N)
Tension Meter Setting: M = 2.5 W = 6 S = 115
[Z-Axis]
Belt Code : 232-2GT-6 (Low Lead Specifications) 226-2GT-6 (High Lead Specifications)
Tension : 32N Tension to Pass: 16N (±5N)
Tension Meter Setting: M = 1.3 W = 6 S = 80
(Althogh the belt to use will differ for each lead, the tension and setting of tension meter will be the
same.)

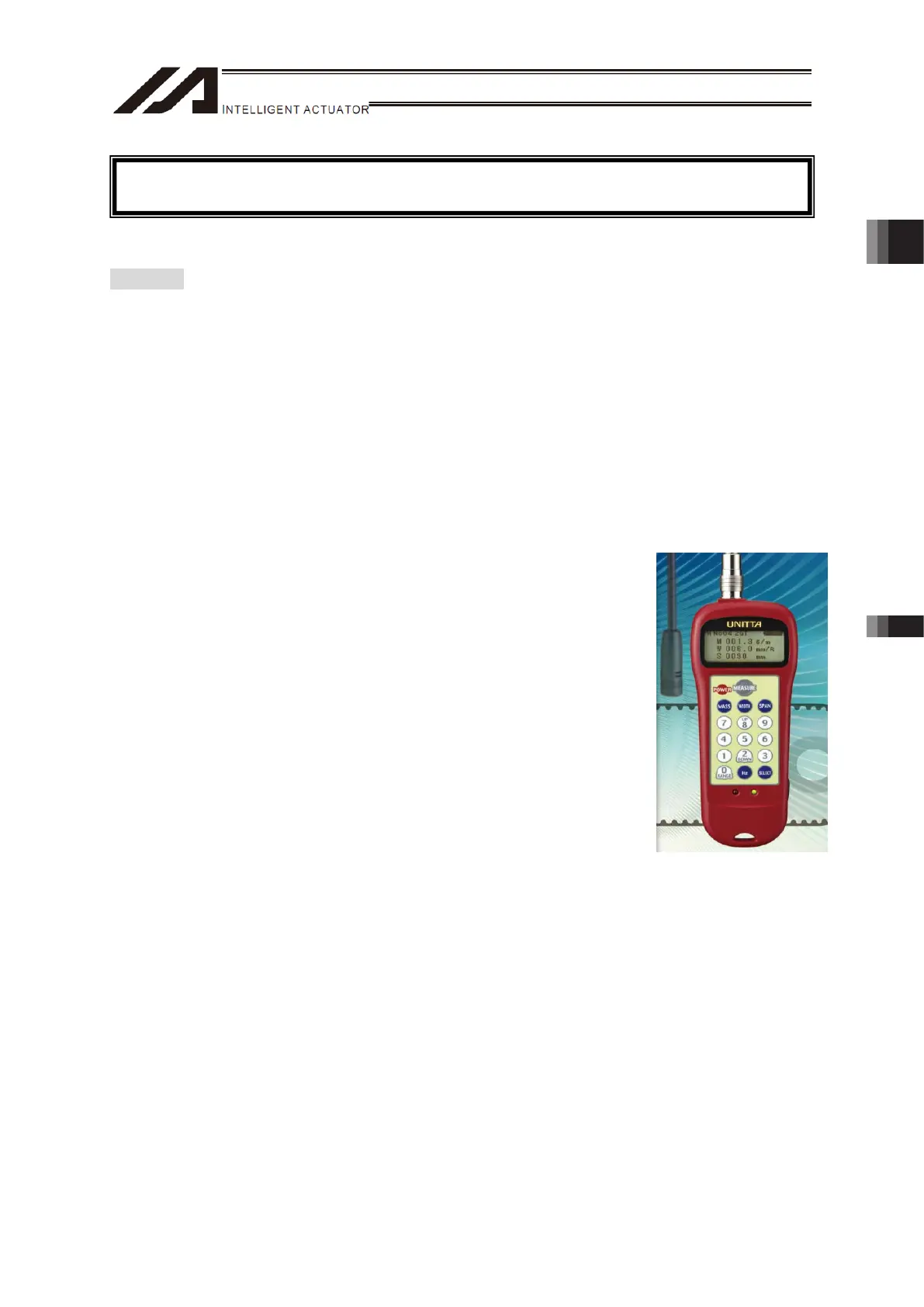

Document: Belt Tension / Tension to Pass and How to Set up Sonic Belt Tension
Meter (X/Y/Z Axes)
