IAI TTA Series User Manual

24

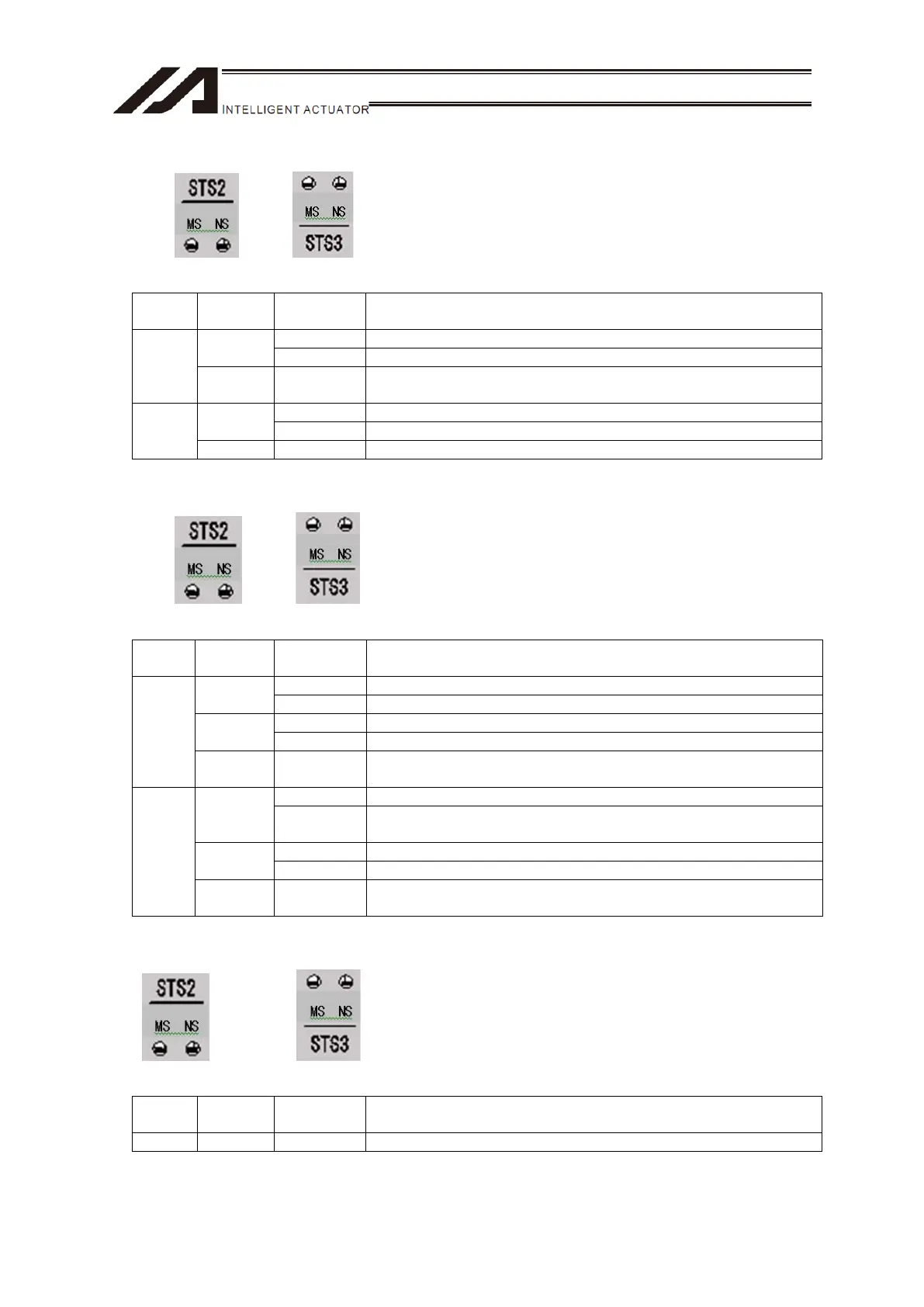

• PROFIBUS-DP Status LED
Expanded I/O2 Expanded I/O3
Name
Display
Color
Status Description
Illuminated Online
Green
Flashing Online (cleared)
NS
Orange Illuminated
An error occurred (Parameterizing error or PROFIBUS
configuration error)
Illuminated Initializing complete
Green
Flashing Initializing complete (with diagnosis event)
MS
Orange Illuminated An error occurred (exceptional error)
• EtherNet/IP Status LED
Expanded I/O2 Expanded I/O3
Name
Display
Color
Status Description
Illuminated Online (one or more connection(s) established)
Green
Flashing Online (connection unestablished)
Illuminated IP address duplicated. Critical error
Orange
Flashing One or more connection(s) in timeout
NS
Green/O
range
OFF Power OFF. IP address unset
Illuminated In operational condition and under control of scanner (master)
Green
Flashing
Construction information setting incomplete
Or scanner (master) in idle condition
Illuminated Critical malfunction (exceptional condition or critical error)
Orange
Flashing Light malfunction possible to recover
MS
Green/O
range
OFF Power OFF
• Expanded I/O Status LED
Expanded I/O2 Expanded I/O3
Name
Display
Color
Status Description
RUN Green Illuminated Serial communication (Sent or received)
