PROPULSION / ENGINE 16-31
CHANGE C2 ICON A5 / MAINTENANCE MANUAL
CHAPTER 16
Special Tools Required
None
Parts Required
None
Aircraft System and Number
13—Propulsion
Consumables
None
TASK INSTRUCTIONS:
1. Remove engine cowl, muffler, exhaust headers, and exhaust shields. (See “Remove Engine Cowl-
ings” on page 16-13.)
2. Visually inspect the engine mount and all its inclusive hardware for any failure, malfunction,
excessive wear, or other anomalies. Figure 16-18 shows the engine mount with all its inclusive
hardware.

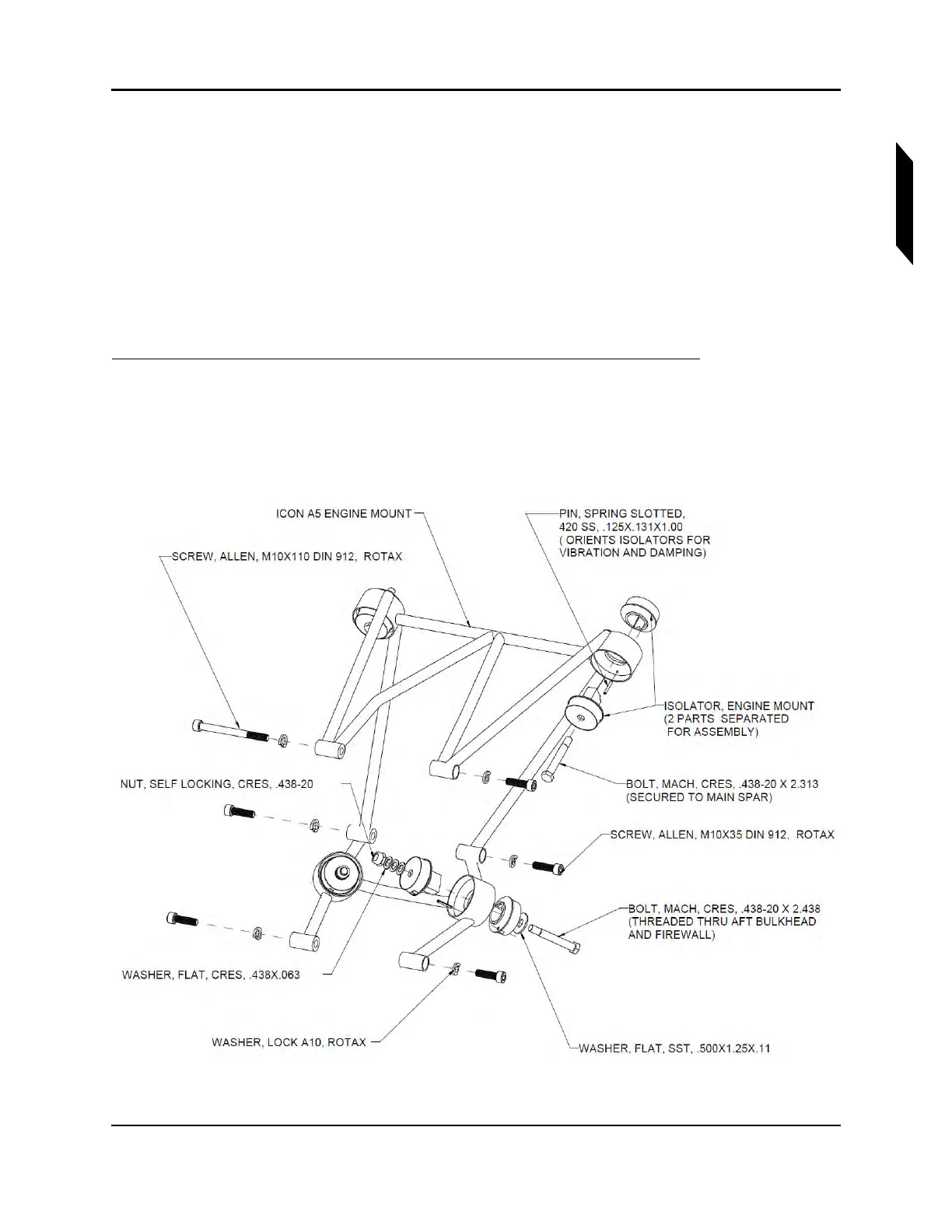

FIGURE 16-18
ENGINE MOUNT EXPLODED VIEW
