Tap to save the selection and return to the New Scan window.

The selected treatment options are displayed in the Treatment Information area.

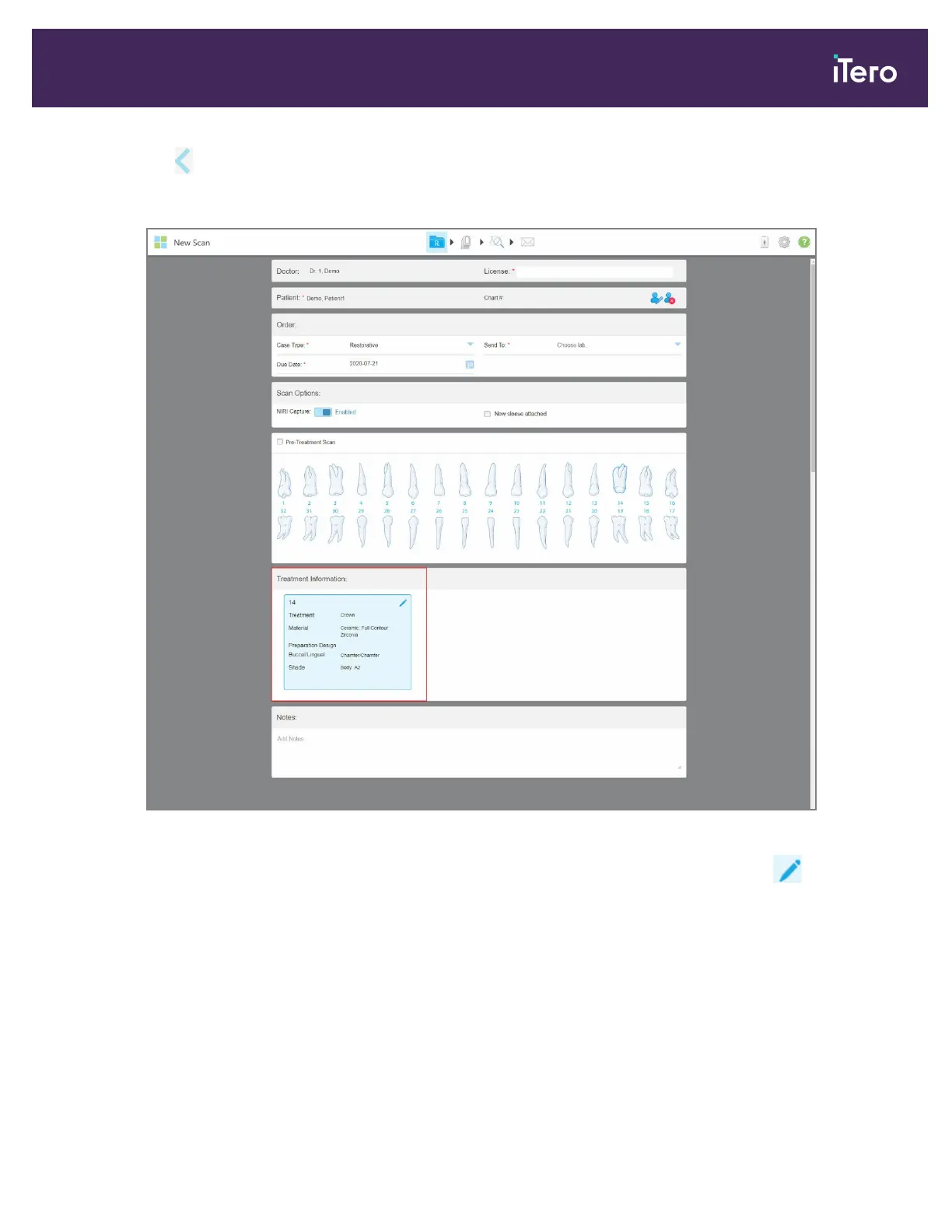

Figure 91: Treatment Information area

You can change the selected treatment options at any time before sending the scan by tapping .
