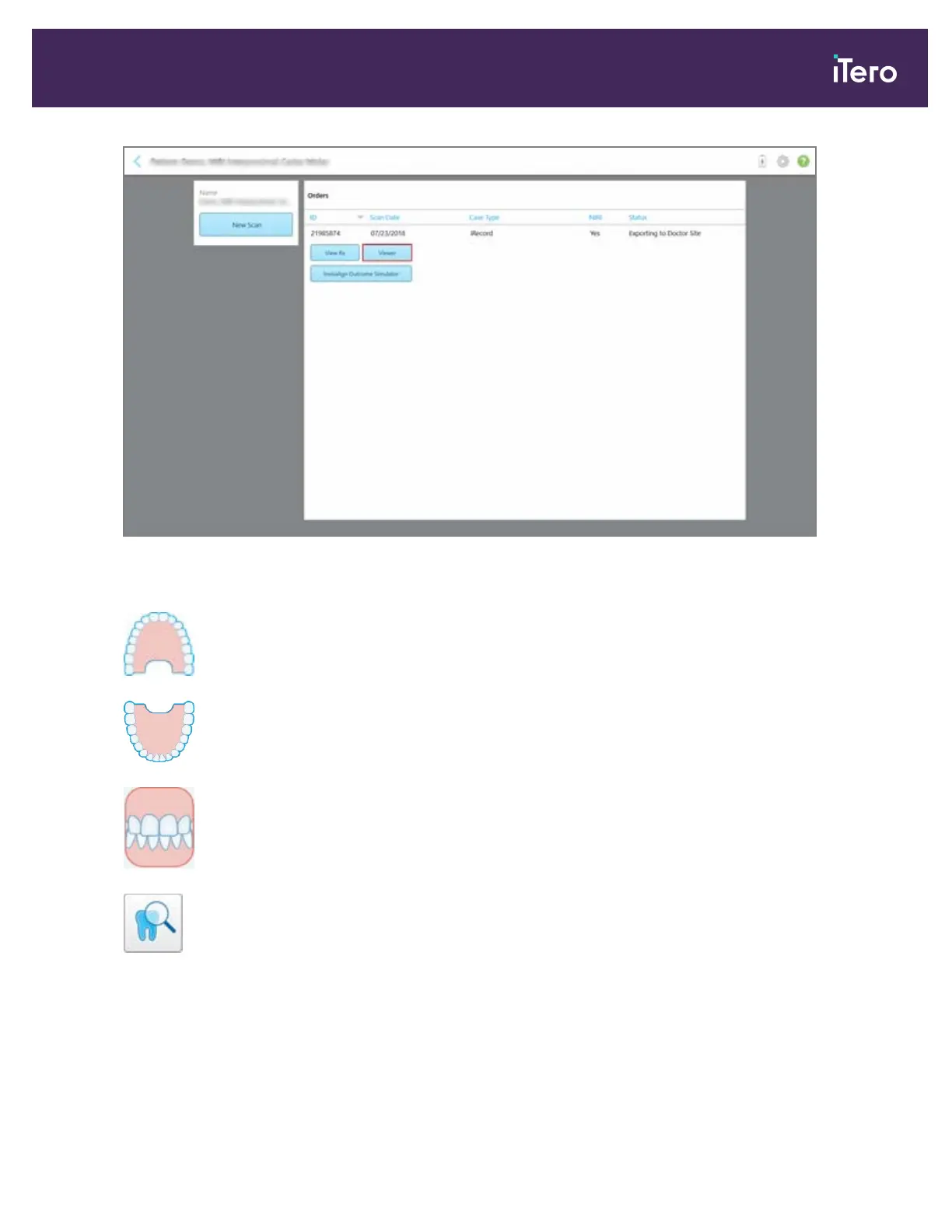

Figure 111: Viewer option in patient’s profile page

In the Viewer, you can tap the following to:

Show/hide the upper jaw

Show/hide the lower jaw

Show both jaws

Open the Review tool to view an area of interest as both NIRI and color images,

one below the other, as described in section 9.10.

Note: The Review tool is displayed only for cases that were scanned with

NIRIenabled.
