3.6.2.2 Defining the Rx settings

You can define the settings that are displayed by default when you open the Scan Details window to fill in a new Rx.

To define the Rx settings:

1. Tap the Rx Settings button.

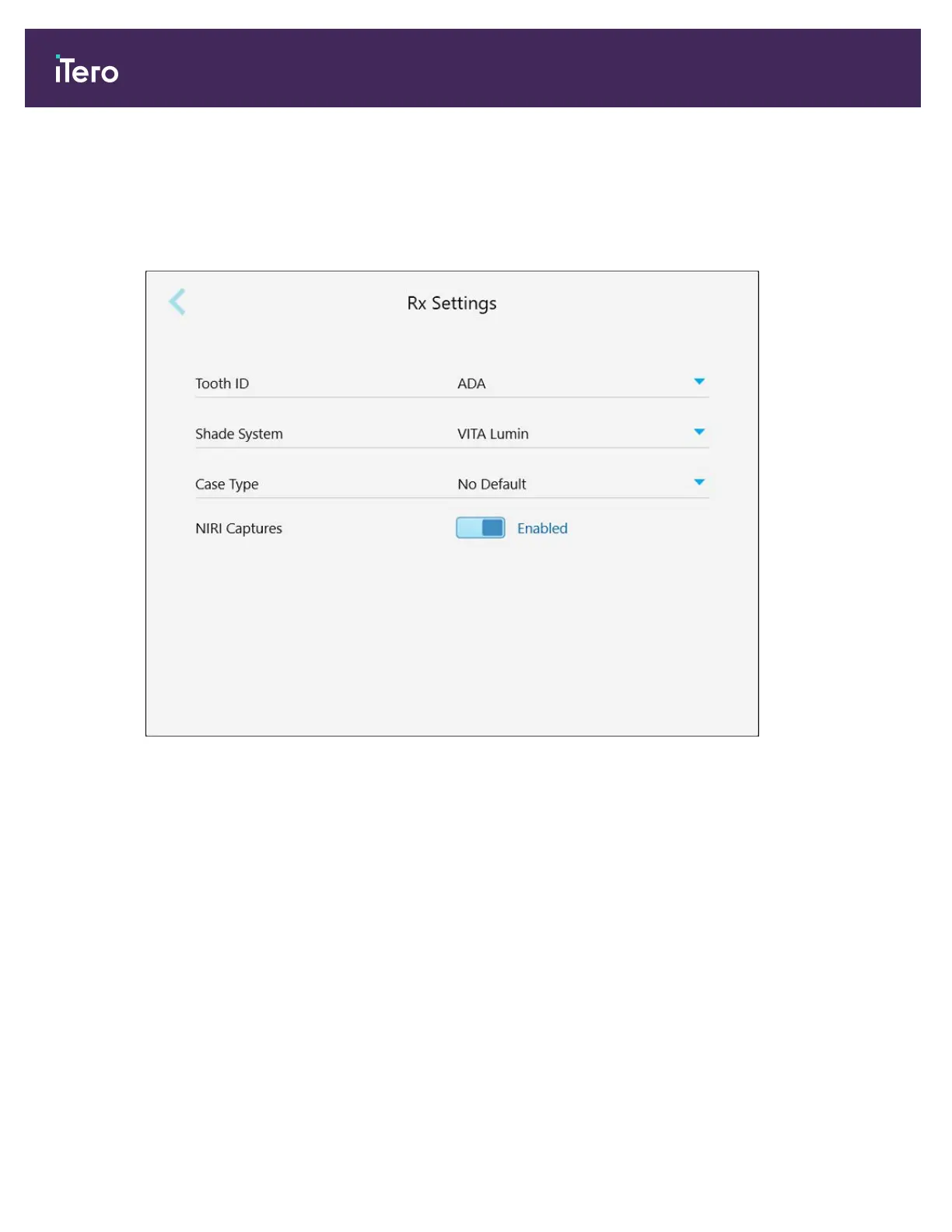

Figure 55: Rx Settings window

iTero Element® 5D Plus User manual
