3.6.1 Defining the Computer settings

The Computer settings enable you to define the brightness, volume, Wi-Fi, and time- zone settings for the scanner.

3.6.1.1 Defining the default brightness setting

To define the default brightness setting, tap the Brightness button, move the slider to the required brightness level,

and then tap to save the changes and return to the Settings window.

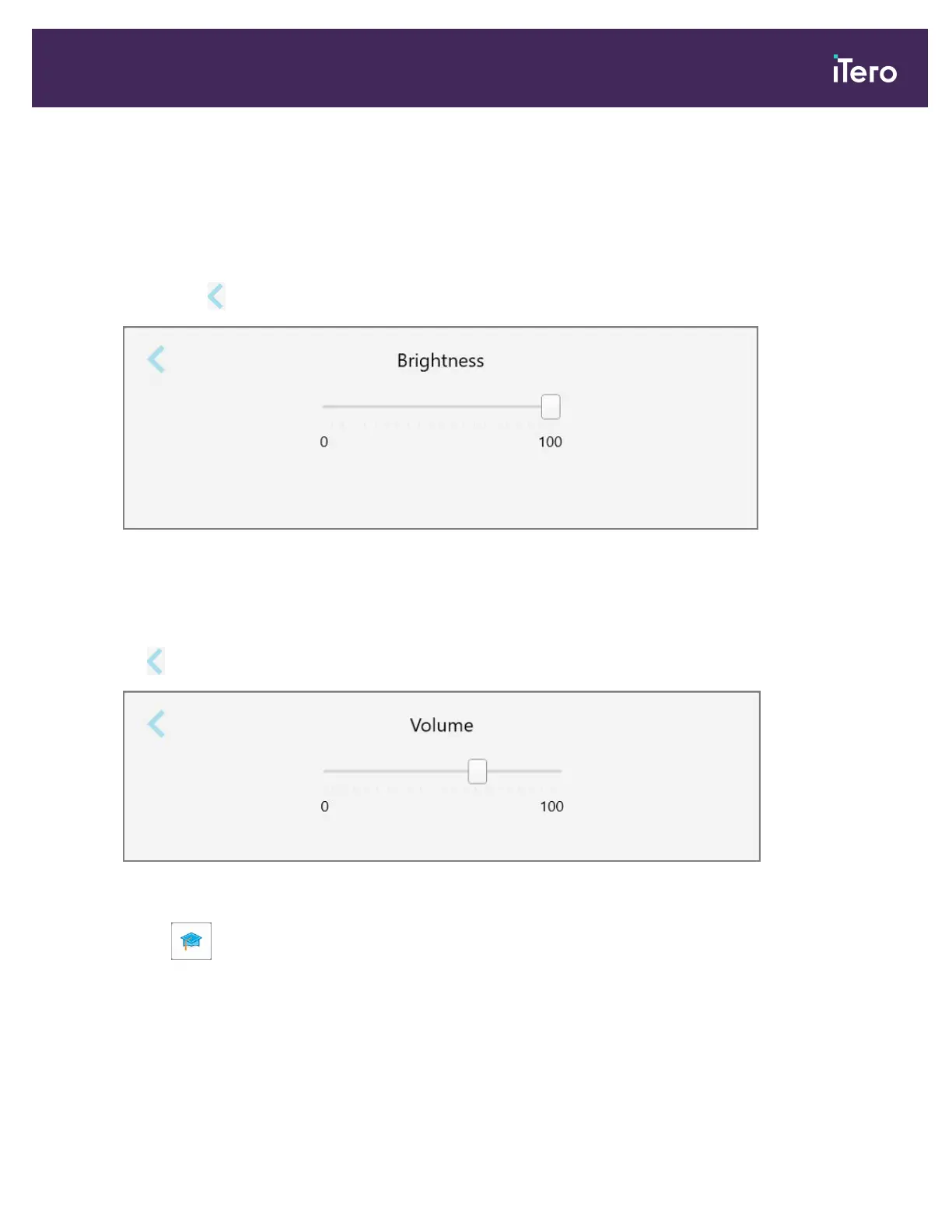

Figure 47: Brightness settings

3.6.1.2 Defining the default volume setting

To define the default system volume, tap the Volume button, move the slider to the required volume level, and then

tap to save the changes and return to the Settings window.

Figure 48: Volume settings

In addition to the system sounds, the volume settings define the volume for the content from the Learning

Center .
