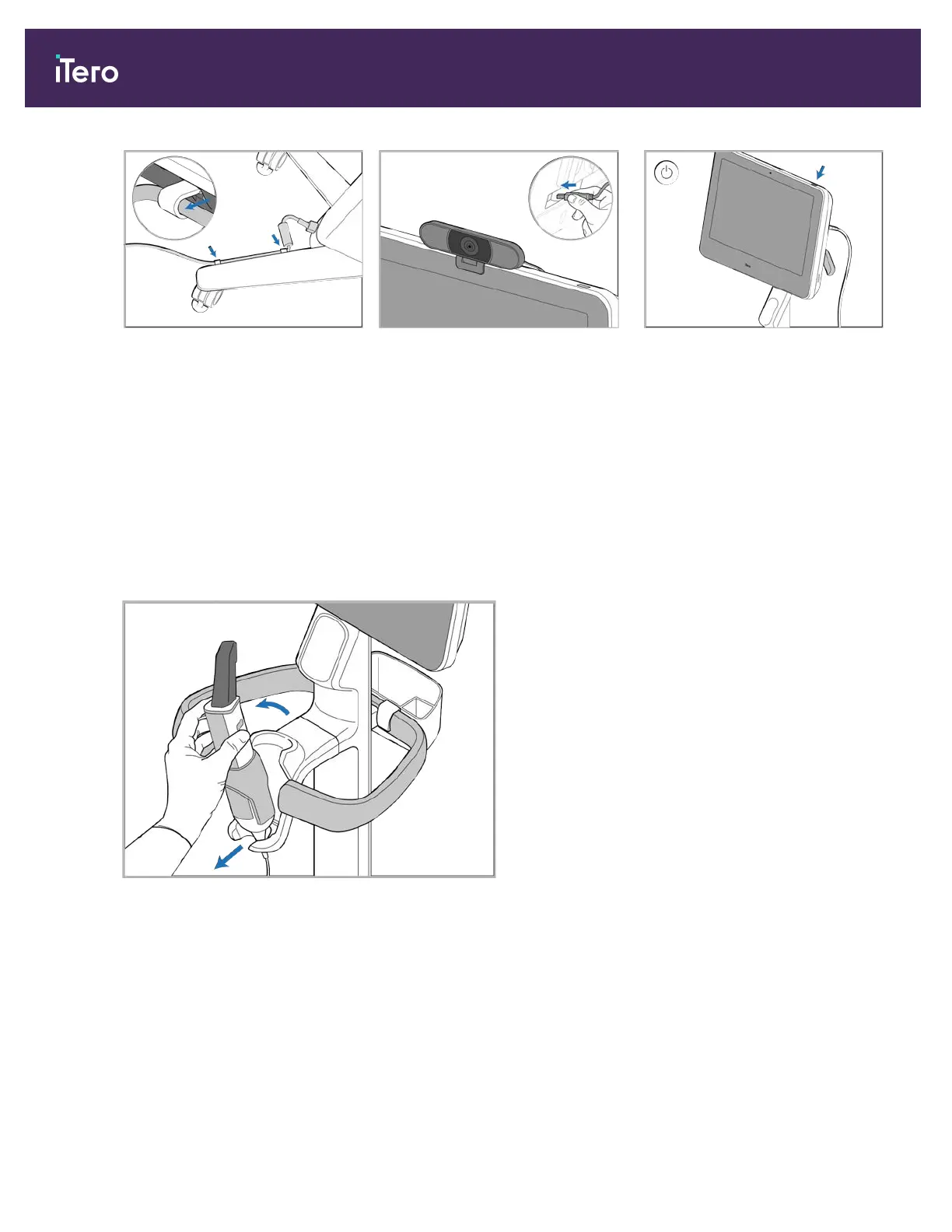

iTero Element 5D Plus - Figure 9: Removing the Wand from the Cradle

To Next Page

To Previous Page

15. Secure the power cable (J) in the

two cable clips, making sure it is

fully inserted.

16. For remote training or support

sessions, position the webcam

(K) on the screen and then

connect it to the USB port at the

back of the screen.

Note: The webcam must be

disconnected after each training

or support session.

17. Plug the power cable (J) into a

power outlet and then press the

Power button (L) to switch on the

scanner.

To remove the wand from the cradle, first pull the upper part of the wand towards you and then gently remove it from

the cradle.

Figure 9: Removing the wand from the cradle
