iTero Element 5D Plus - Figure 67: Remove the Wand Barrier Sleeve from Its Packaging; Figure 68: Slide the Rigid Section of the Wand Barrier Sleeve into Place

To Next Page

To Previous Page

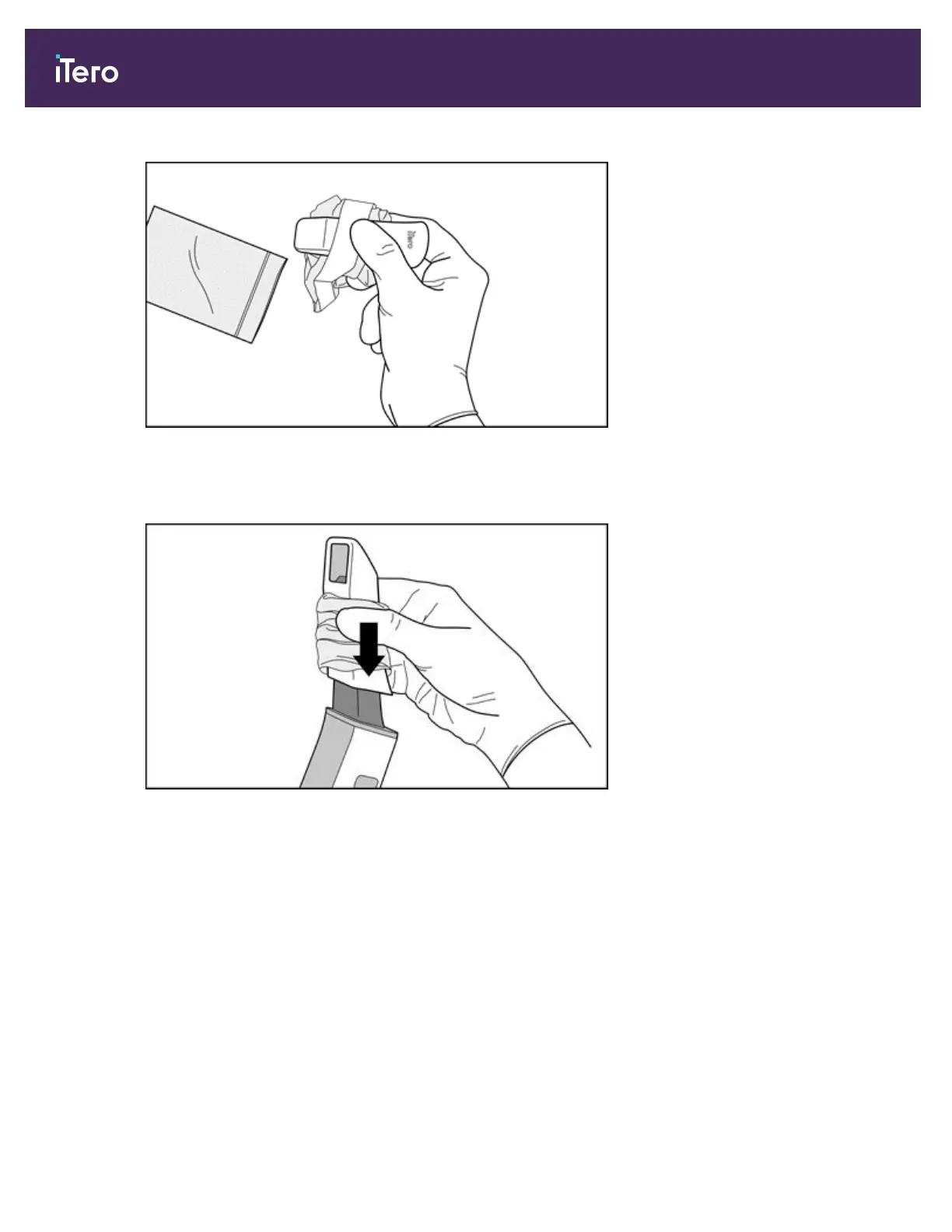

Figure 67: Remove the wand barrier sleeve from its packaging

4. Slide the rigid section of the wand barrier sleeve onto the optical tip of the wand until you feel a “click”, making

sure that the transparent sheath is not pinched between the rigid section of the wand barrier sleeve and the wand.

Figure 68: Slide the rigid section of the wand barrier sleeve into place
