4.9 Removing the wand barrier sleeve
The wand barrier sleeves are intended for single-patient use and must be disposed of and replaced after each patient
in order to avoid cross-contamination.
To remove the wand barrier sleeve:
1. Once the scan is complete, or if the scan has to be interrupted, wearing gloves, scrunch the transparent sheath
halfway toward the wand tip.

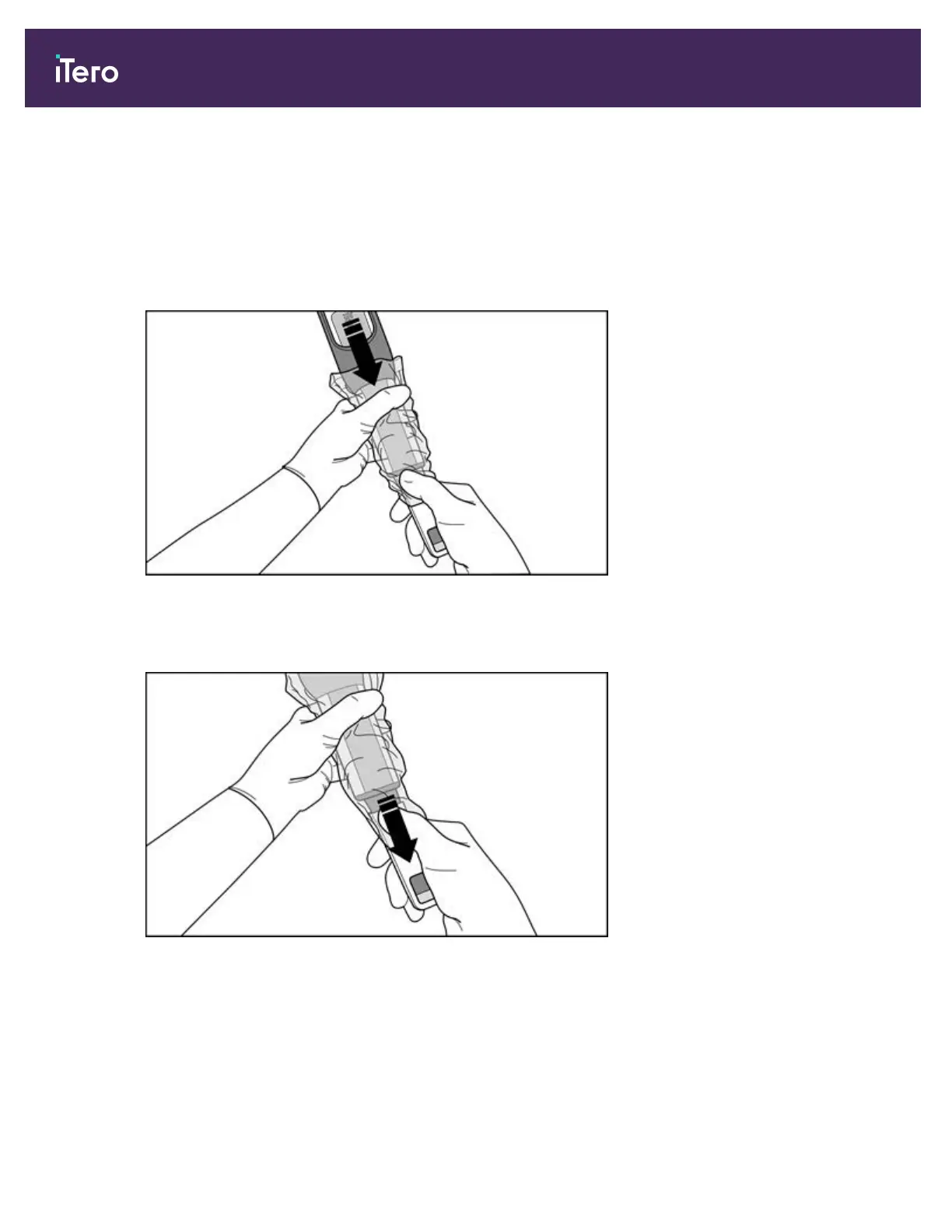

Figure 115: Scrunch the transparent sheath halfway towards the tip
2. Holding the wand by the scrunched transparent sheath, slightly release the rigid section of the barrier sleeve from
the wand tip using the other hand.
Figure 116: Slightly release the rigid section of the wand barrier sleeve from the tip of the wand
3. Holding the wand by the scrunched transparent sheath, place the wand in the cradle.
4. Pull the rigid section of the barrier sleeve to remove it from the wand.
iTero Element® 5D Plus User manual
102 © 2020 Align Technology, Inc. All rights reserved.
