Tap to mark the prepped tooth in high resolution.

The model is displayed as follows:

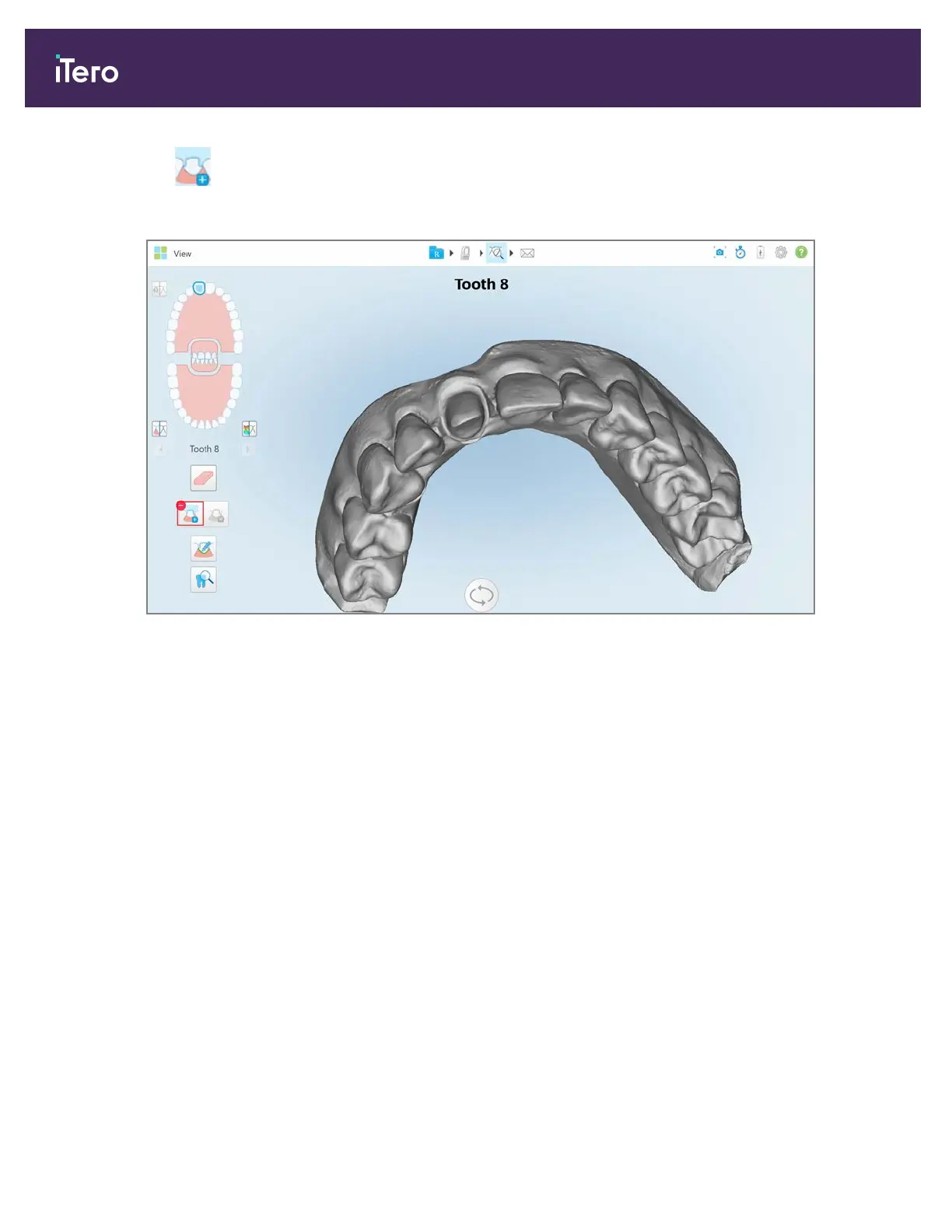

Figure 165: Before selecting the die separation

4. Draw the area for the die separation.

The selected area is displayed in high resolution.
