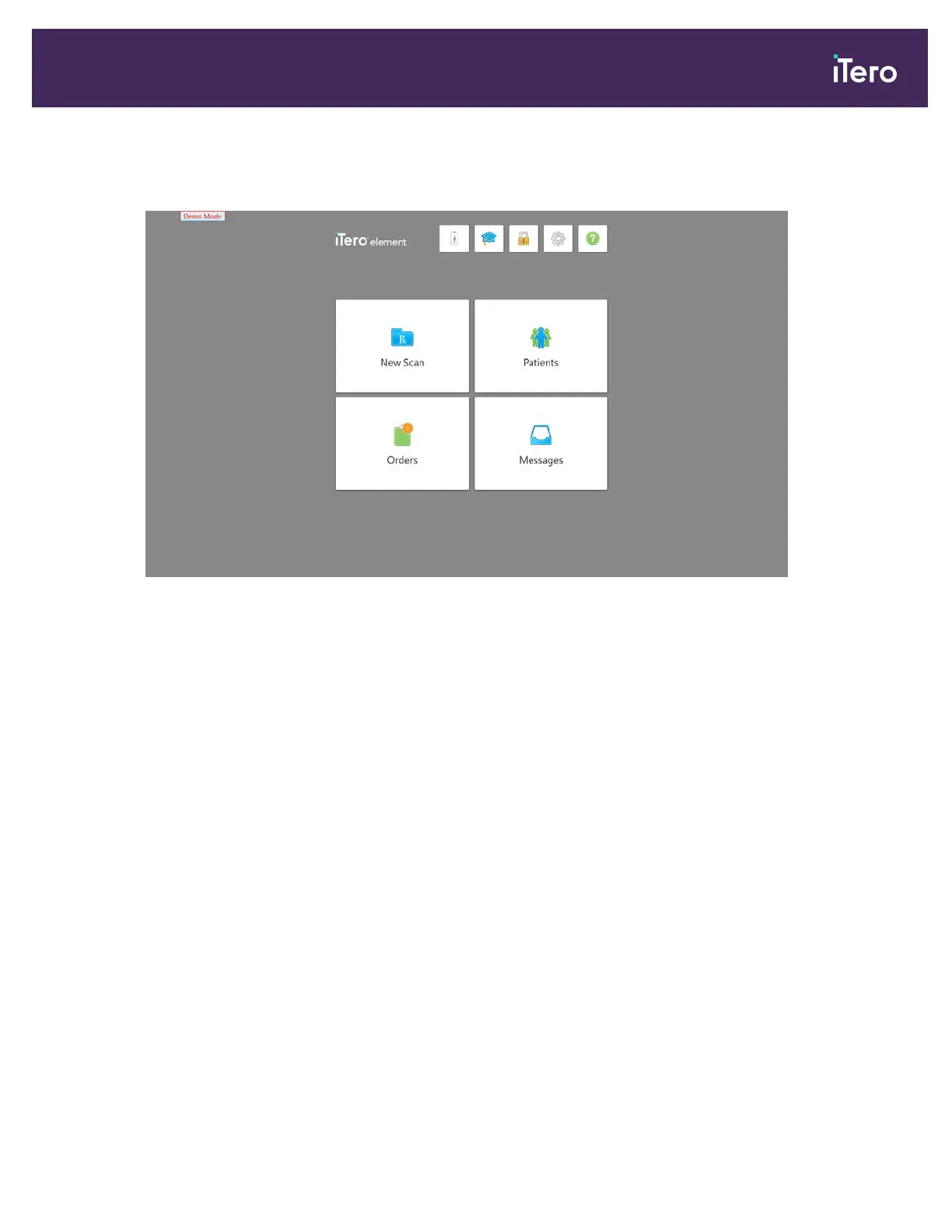

iTero Element 5D Plus - Figure 27: Demo Mode Home Screen

To Next Page

To Previous Page

4. Tap Demo Login.

The Demo Mode home screen is displayed, with Demo Mode shown on the top left of the window.

Figure 27: Demo Mode home screen

5. To view the demo cases, tap Orders.

A list of demo cases is displayed in the Past Orders pane.

In addition to the examples of restorative and orthodontic scan types, the following iTero Element 5D Plus demo

cases with NIRI are displayed in the list of Past Orders:

Demo, NIRI Caries in Young

Demo, NIRI Early and Established Carious Lesions

Demo, NIRI Interproximal Caries Molar

Demo, 5D NIRI

Demo, 5D proximal caries

Demo, 5D with restorations
