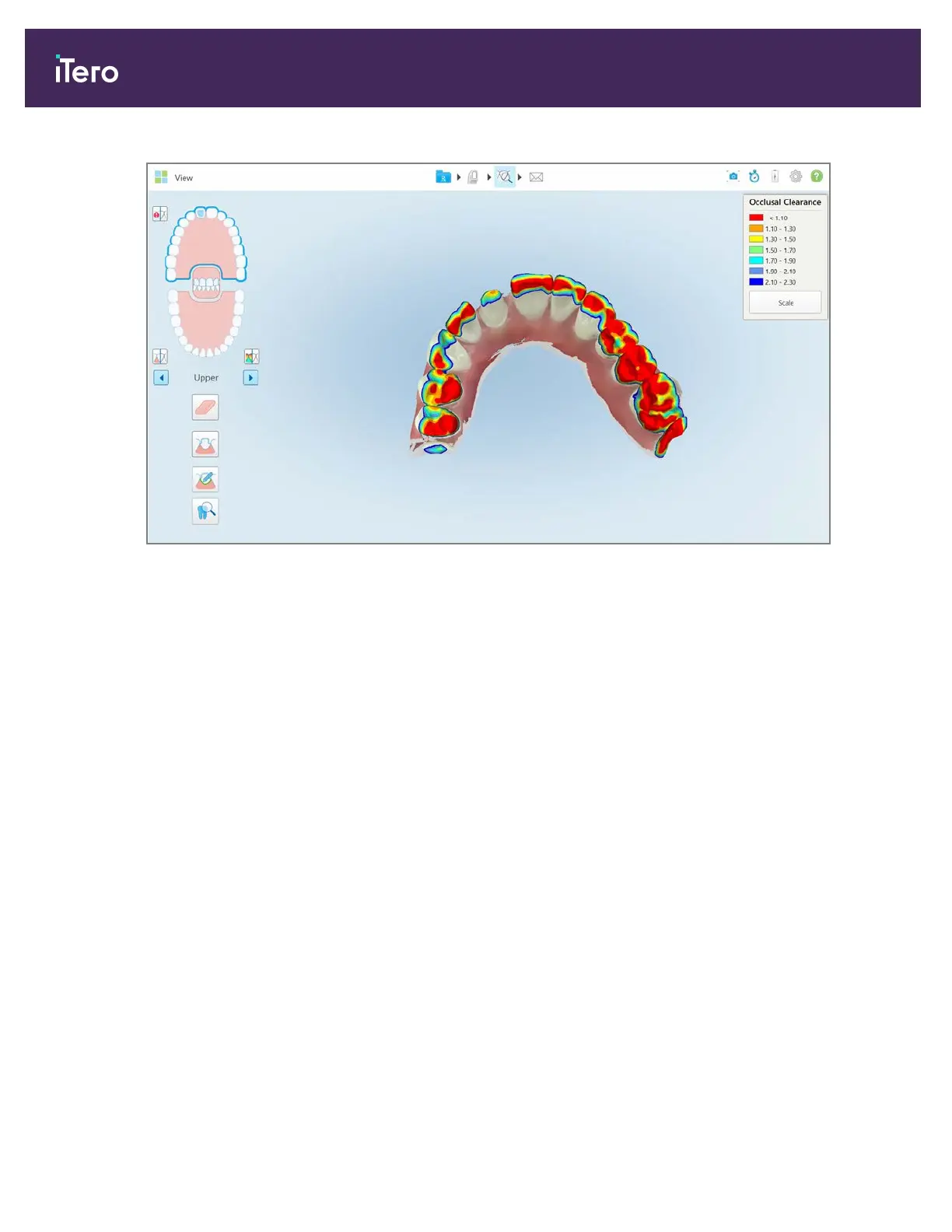

Figure 153: Occlusal clearance between the opposing teeth

2. If necessary, reduce the prepped tooth and rescan the area, as described in section 9.6, above.

3. If required, you can change the occlusal values displayed on the opposing teeth.
