iTero Element 5D Plus - Figure 25: Login Window with a List of Demo Users; Figure 26: Demo Login Button

To Next Page

To Previous Page

The Login window is displayed, enabling you to select the demo user.

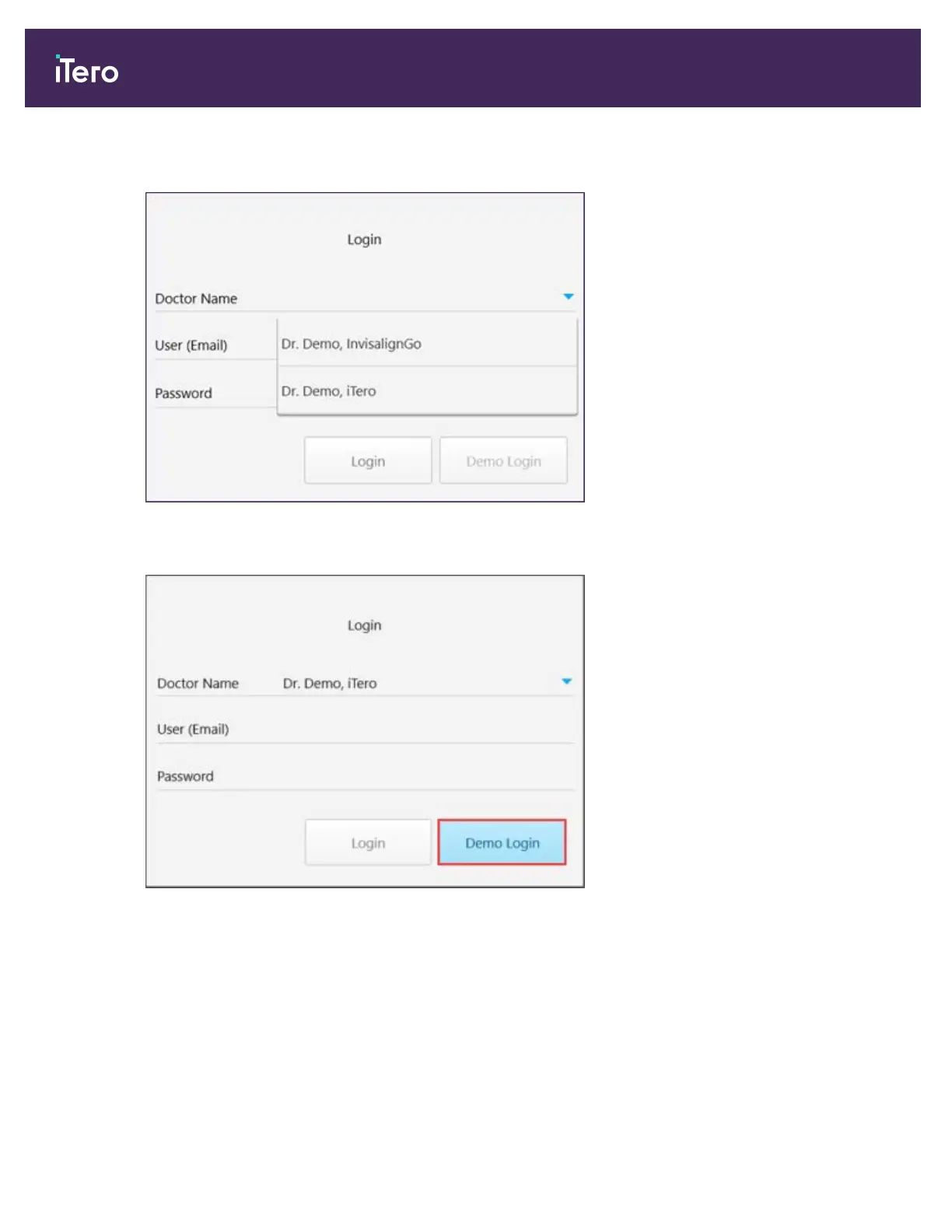

Figure 25: Login window with a list of demo users

3. To view iTero restorative cases, select the Dr. Demo, iTero user from the Doctor Name drop-down list.

Figure 26: Demo Login button

iTero Element® 5D Plus User manual
