iTero Element 5D Plus - Figure 130: in Progress Pane - Options; Figure 131: Past Orders Pane

To Next Page

To Previous Page

2. Tap on an order in the In Progress pane to view the following options:

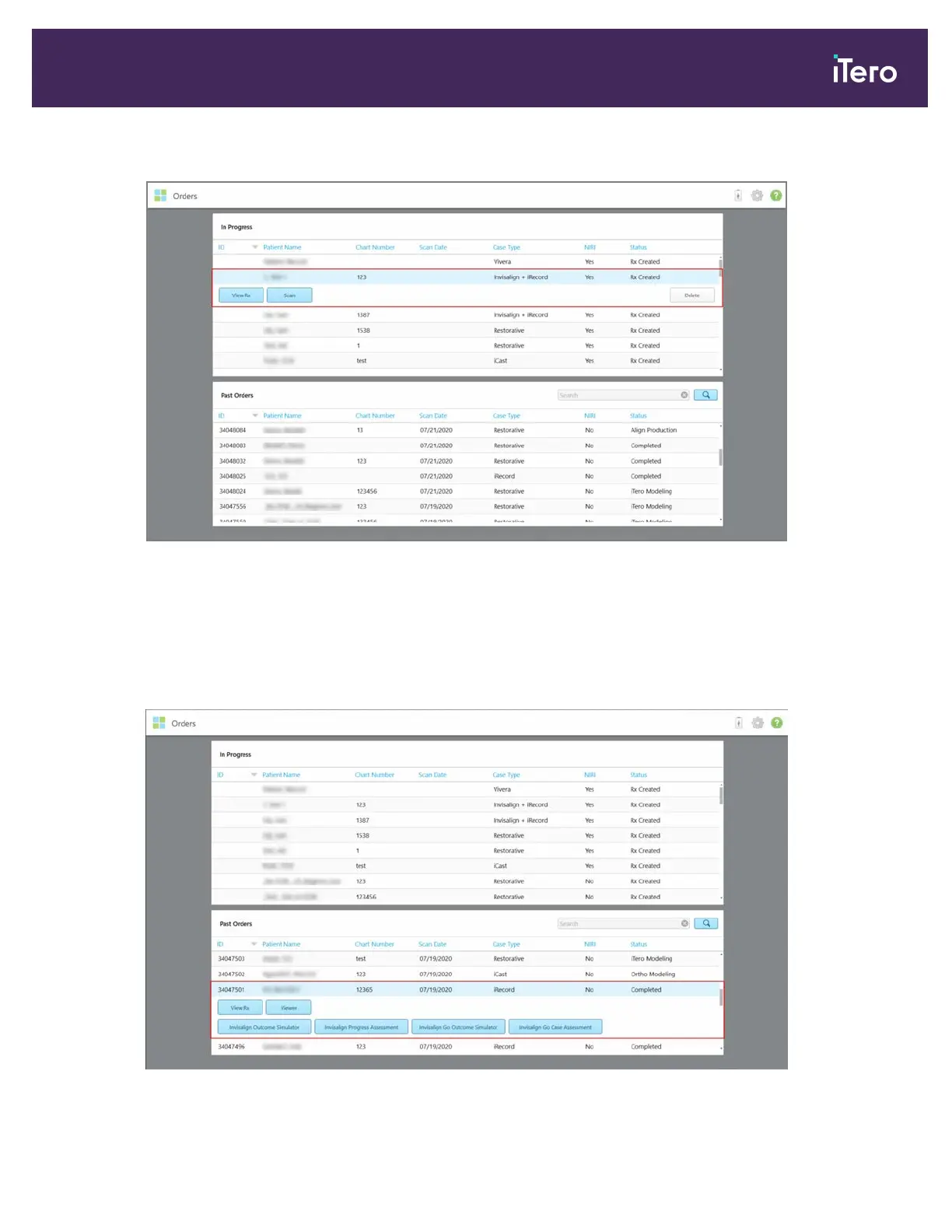

Figure 130: In Progress pane – options

View Rx: Opens the Rx Details window, enabling you to view the prescription for this order.

Scan: Opens the Scan window, enabling you to create a new scan or continue scanning the patient.

View Scans: Opens the View window, enabling you to review the current scan.

3. Tap an order in the Past Orders pane to view the following options, depending on the case type:

Figure 131: Past Orders pane – options
