iTero Element 5D Plus - Figure 180: Confirmation about the Annotations Being Discarded; Figure 181: Notification that the Screenshots will be Uploaded to Myitero

To Next Page

To Previous Page

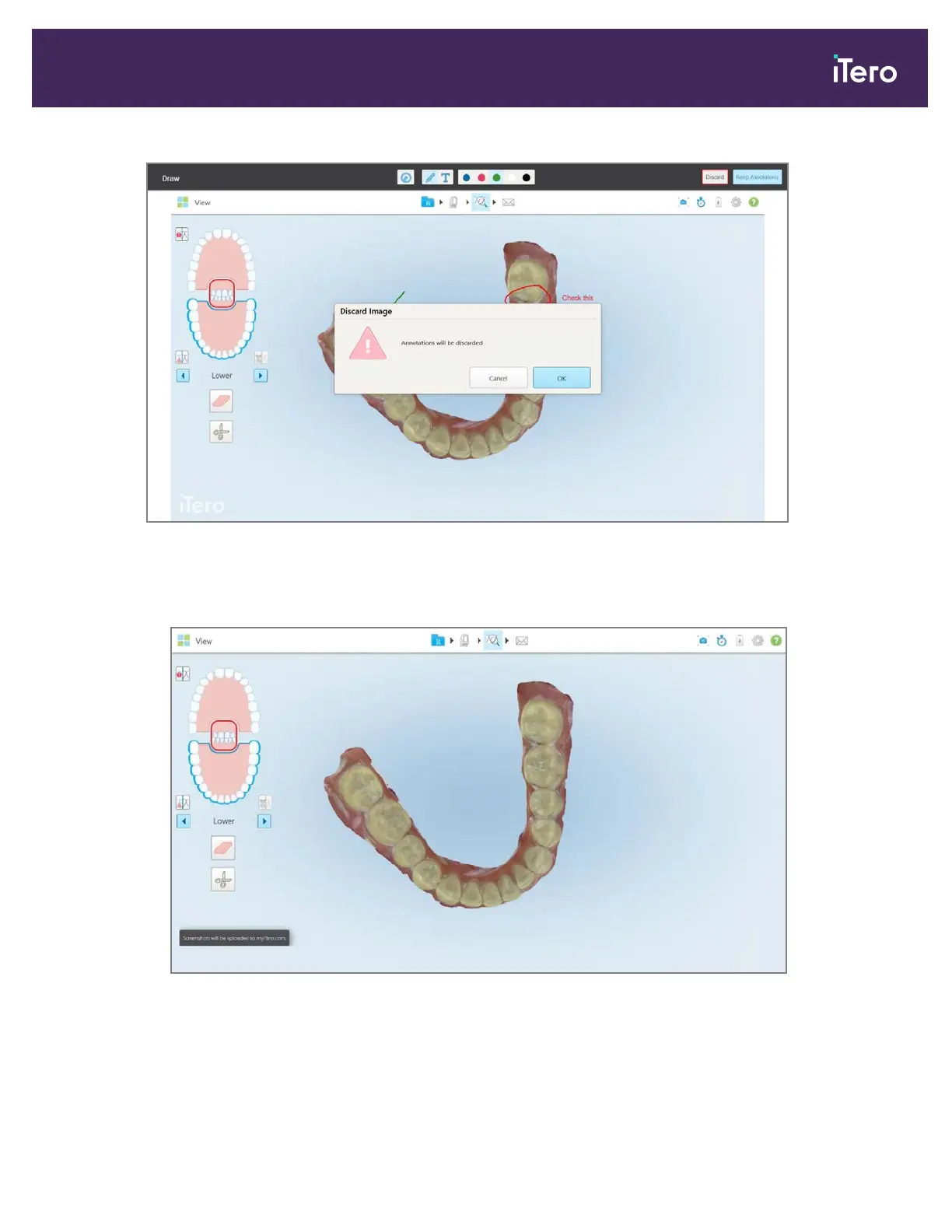

Figure 180: Confirmation about the annotations being discarded

a. Tap OK to proceed.

A pop-up message is displayed notifying that the screenshots will be uploaded to MyiTero.

Figure 181: Notification that the screenshots will be uploaded to MyiTero

The screenshots will be sent to the lab, together with the scan, and can then be downloaded from MyiTero,

from the Orders page or the Viewer.
