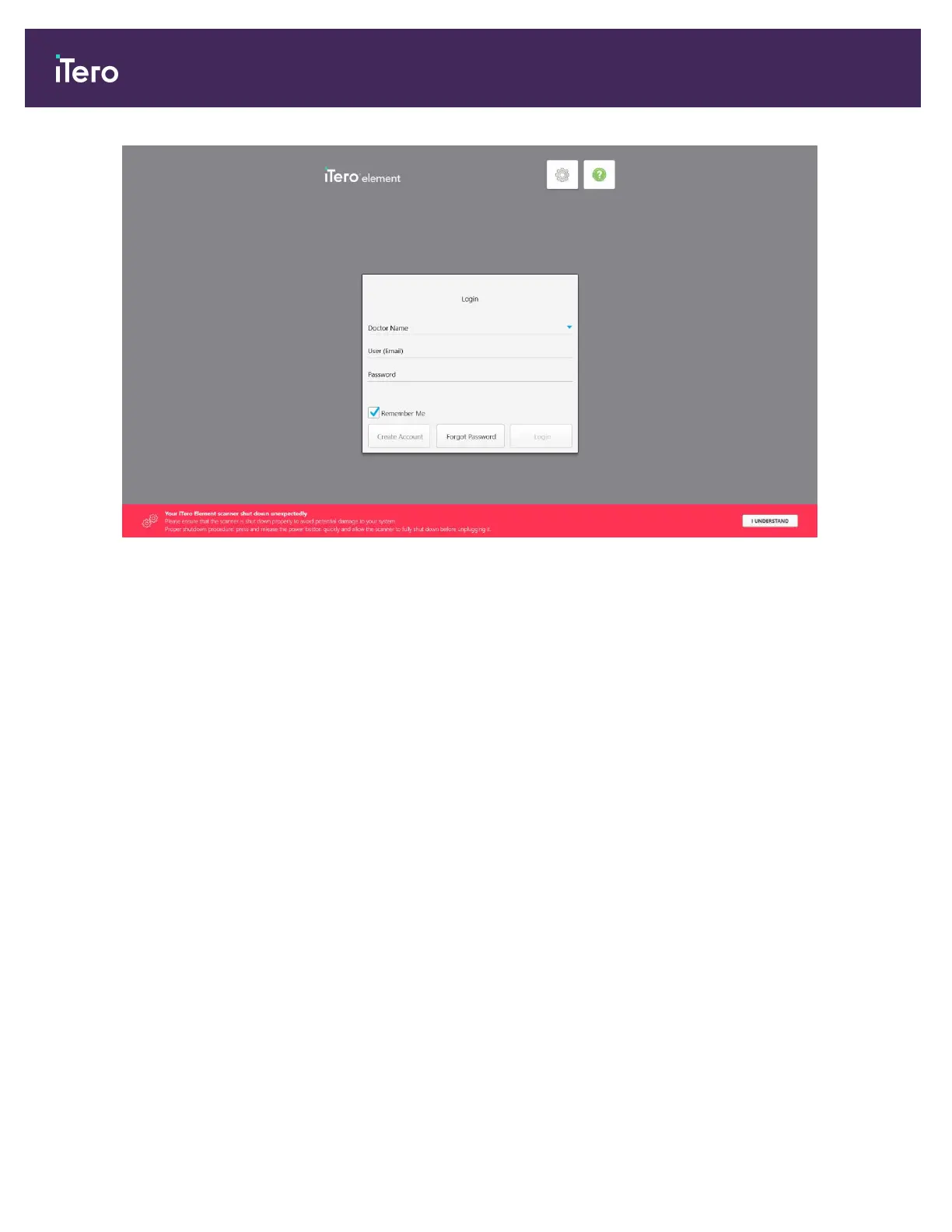

Figure 31: Unexpected shutdown notification

To log in to the scanner:

1. Select your user name from the Doctor Name drop-down list.

2. Enter the email address you used when registering with myaligntech.com. Your email address is displayed

automatically if you selected the Remember Me check box in a previous login session.

3. Enter your password. If you have forgotten your password, you can reset it, as described in section 3.1.1.

4. Select the Remember Me check box for the system to remember your email address in future sessions. You will

still need to enter your password in order to access the scanner.

5. Tap Login.
