l Toggle between the 3D and the viewfinder display, described in section 4.5.4
l Toggle between displaying a color image or a NIRI image in the viewfinder, as described in section 4.5.5
After scanning, you can edit the scan by:
l Deleting a segment, as described in section 9.5.1
l Deleting a selected area, as described in section 9.5.2
l Capturing areas with missing anatomy, as described in section 9.5.3
l Displaying the excess tissue around the edges of the 3D model, as described in section 9.5.4
When you have finished scanning the patient, tap on the toolbar to move to View mode, where you can ensure
that the scan is complete before sending it to the lab or storage, as described in section 4.6.
4.5.1 Scanning guidance
As soon as you move to Scan mode, the recommended scanning sequence for the selected scan segment is
displayed in the center of the scanner window. It will automatically disappear after a short while, or you can tap
anywhere on the screen to hide it.
iTero recommends you follow the scanning sequence for best results.

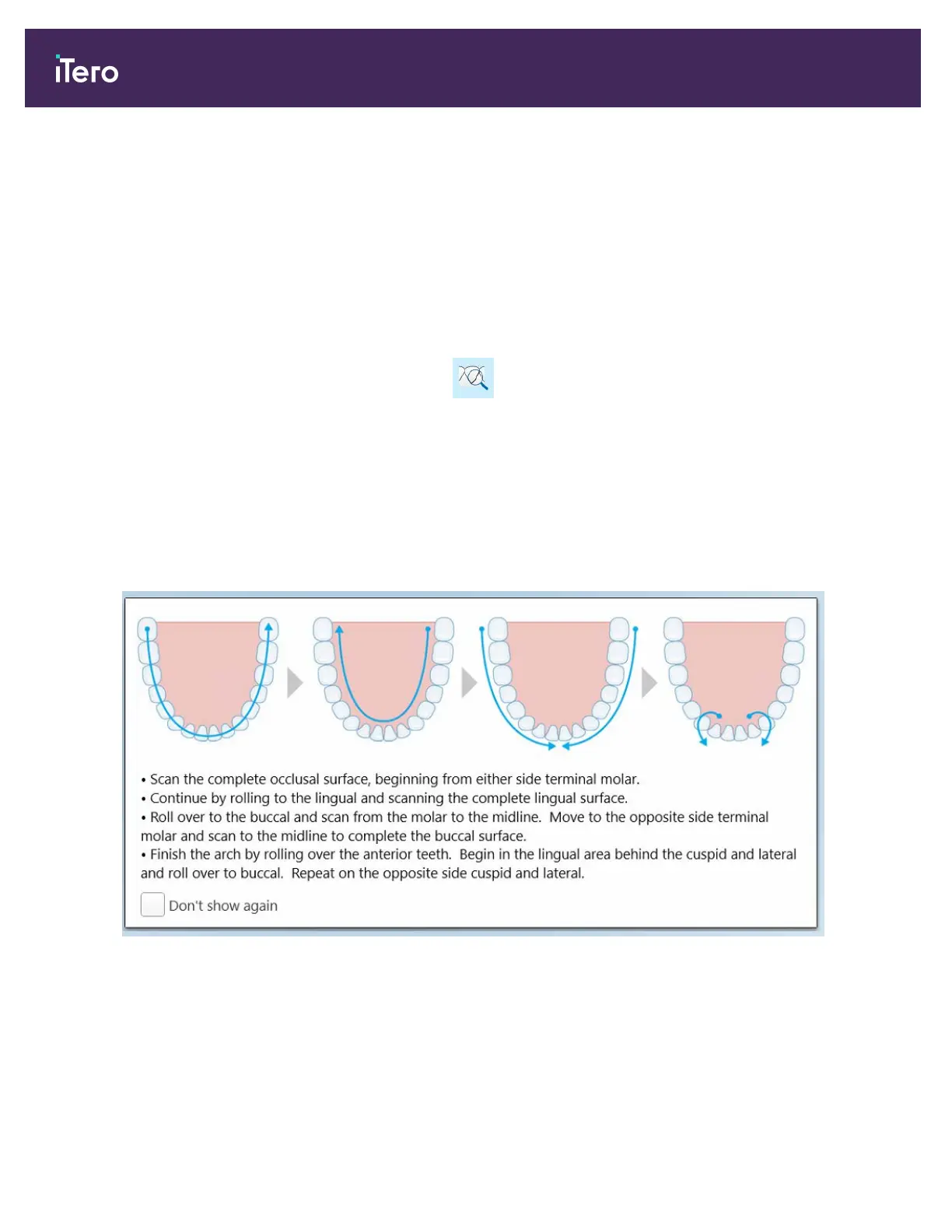

Figure 97: Recommended scanning sequence – lower jaw
Note: If you select the Don’t show again check box, this guidance will not be displayed in future scans. You can
return the guidance by enabling it in the Scan settings, as described in section 3.6.2.1.
iTero Element® 5D Plus User manual
88 © 2020 Align Technology, Inc. All rights reserved.
