iTero Element 5D Plus - Figure 127: Patients Profile Page - Viewer Option; Figure 128: Scan Displayed in the Viewer

To Next Page

To Previous Page

To view a previous scan in the Viewer:

1. In the patient’s profile page, tap the scan you want to display in the Viewer and then tap Viewer.

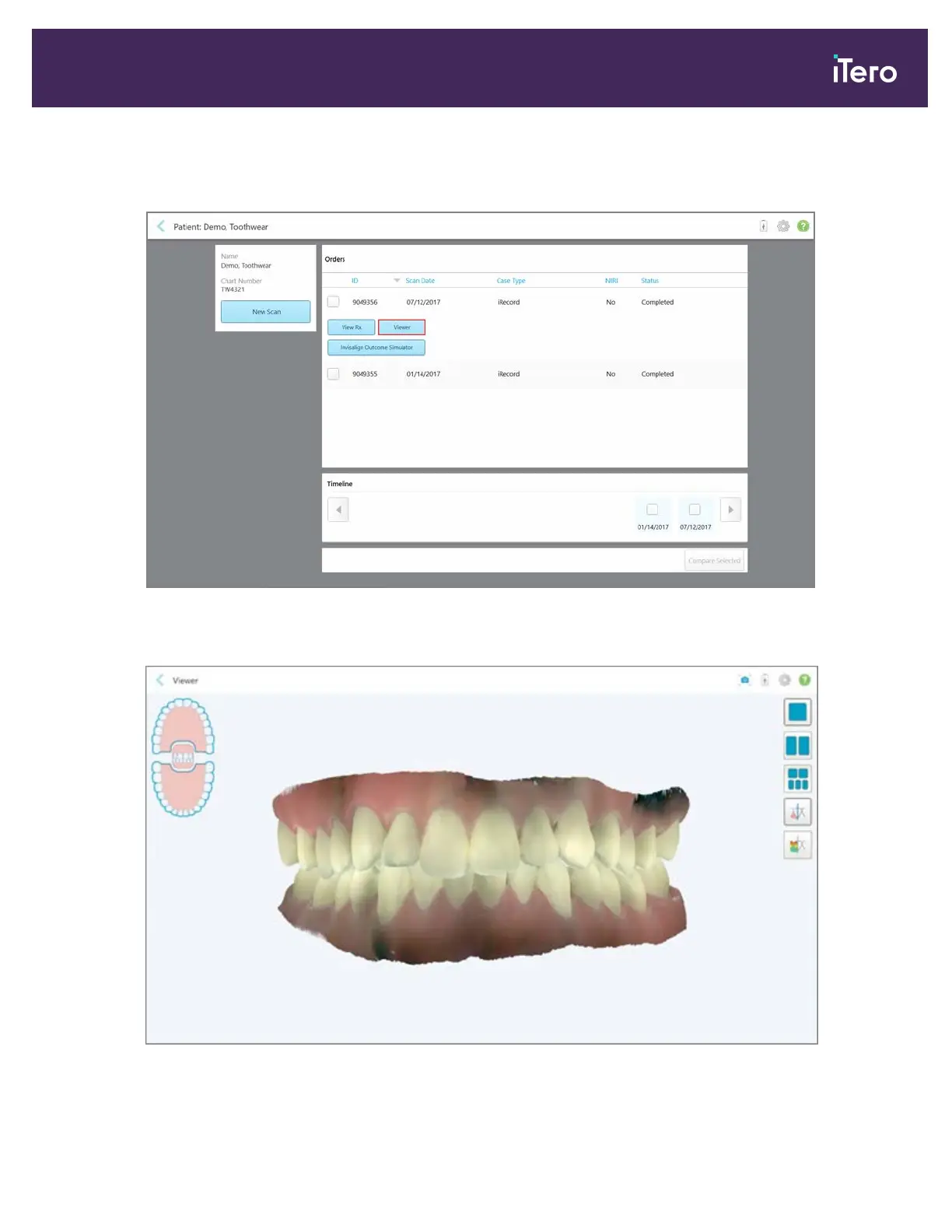

Figure 127: Patient’s profile page – Viewer option

The scan is displayed in the Viewer.

Figure 128: Scan displayed in the Viewer

For more information on working with the Viewer, see section 4.8.
