3.6.1.4 Defining the time zone

To define the time zone, tap the Time Zone button, select the time zone from the drop-down list, and then

tap to save the changes and return to the Settings window.

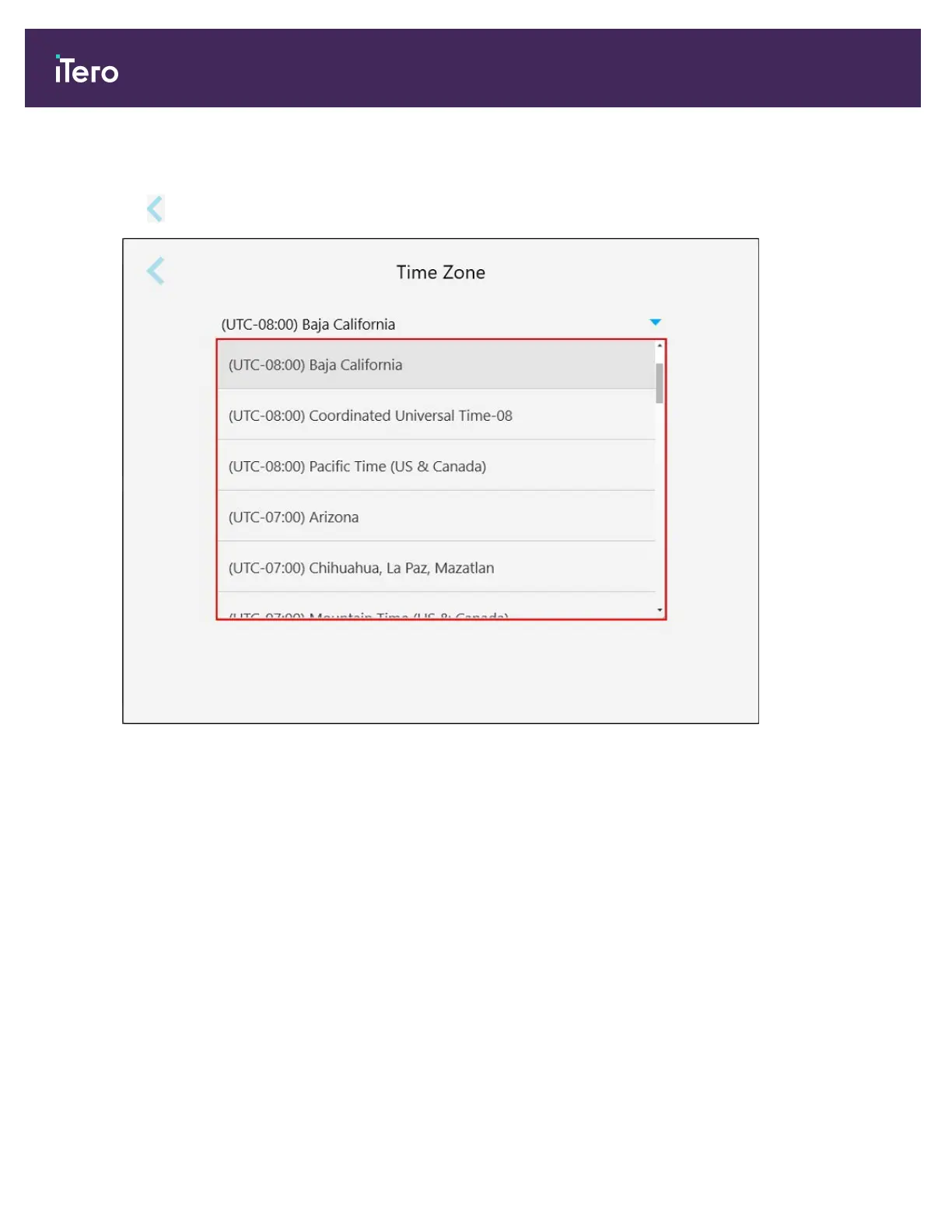

Figure 52: Time zone settings

Note: The time zone settings can be accessed only when you are logged in to the scanner.
