3.6.2 Defining the User settings

The User settings enable each user to define the settings that are displayed by default when the specific user logs in

to the scanner.

3.6.2.1 Defining the scan settings

You can define the default settings that are taken into account when scanning a patient

To define the scan settings:

1. Tap the Scan Settings button.

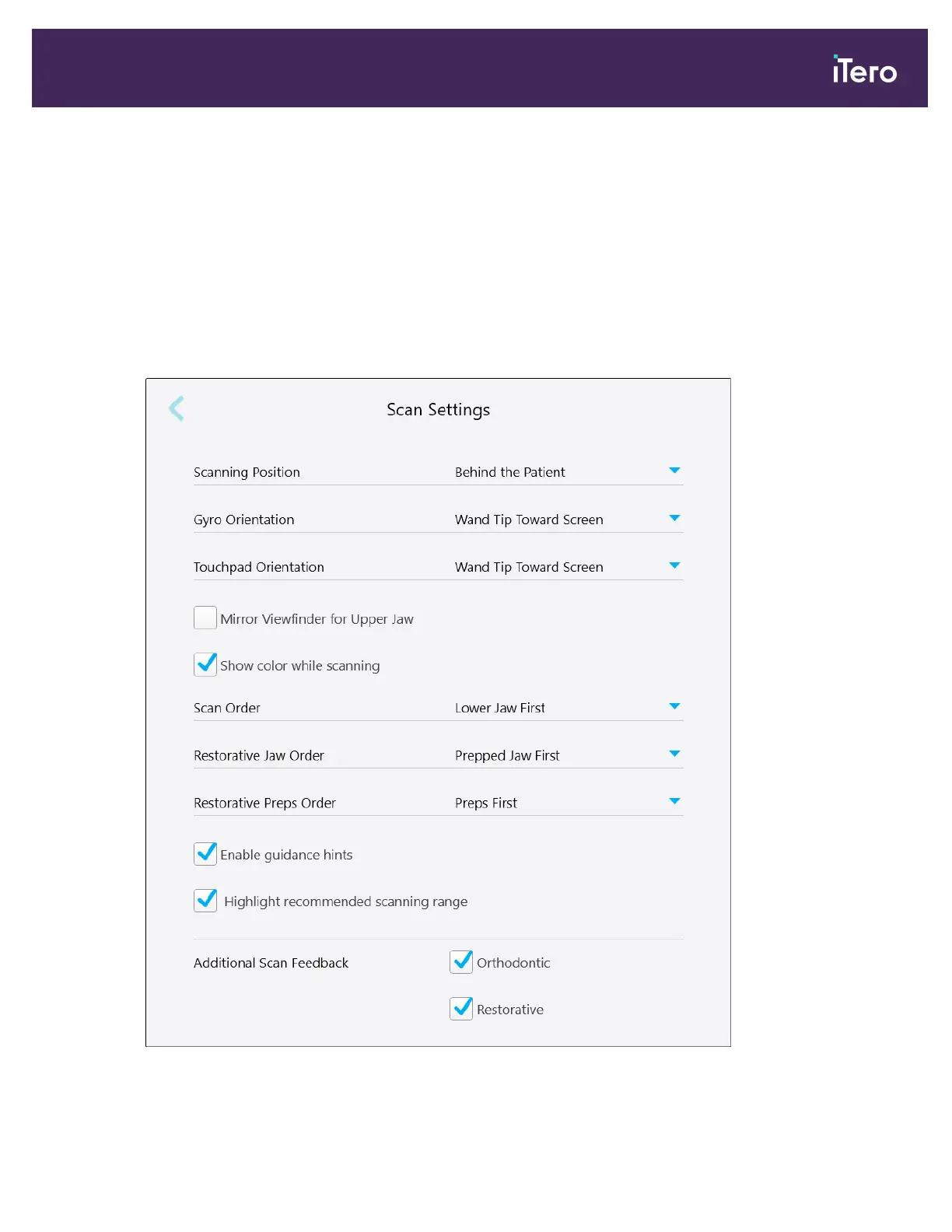

Figure 53: Scan Settings window
