4.4.2 Disabling NIRI capture

When patients are scanned, the NIRI data is captured by default. However, you can disable capturing the NIRI data,

before starting a new scan. In this case, none of the NIRI features are displayed in the GUI, and NIRI data is not

captured, saved, or sent.

If required, NIRI capture can also be disabled for all scans by default, as described in section 3.6.2.2

To disable NIRI for a specific scan:

l When starting a new scan, in the New Scan window, toggle the NIRI Capture option to Disabled.

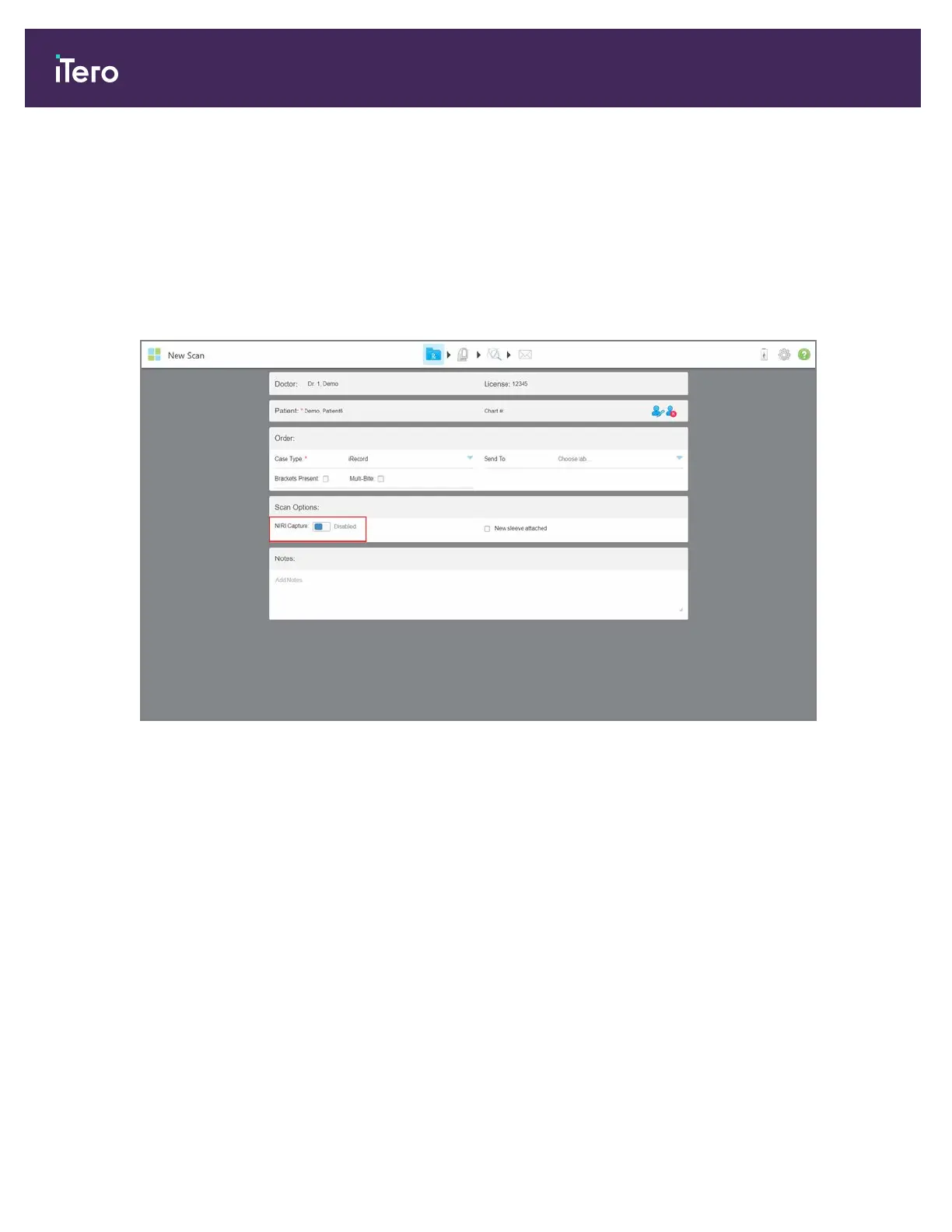

Figure 92: Disabling NIRI capture for a specific case

Note: This option cannot be changed after you have started scanning.
