iTero Element 5D Plus - Figure 161: Green Hint Point Centered on the Prepped Tooth; Figure 162: die Separation Is Displayed in High Resolution

To Next Page

To Previous Page

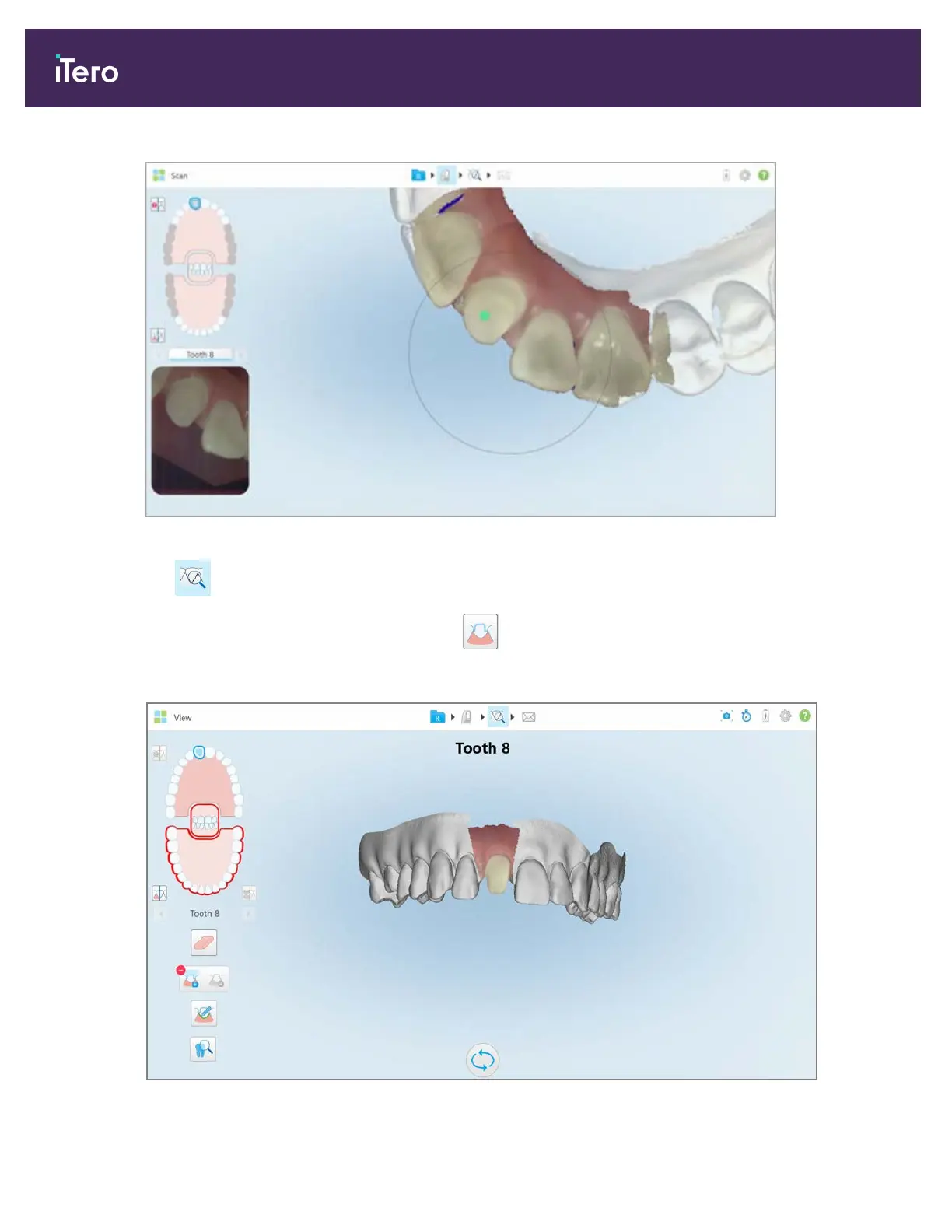

Figure 161: Green hint point centered on the prepped tooth

Tap on the toolbar to move to View mode.

In the View window, tap the Die Separation tool .

The die separation is displayed in high resolution.

Figure 162: Die separation is displayed in high resolution
