5. Tap Next.

The communication with Align is verified.

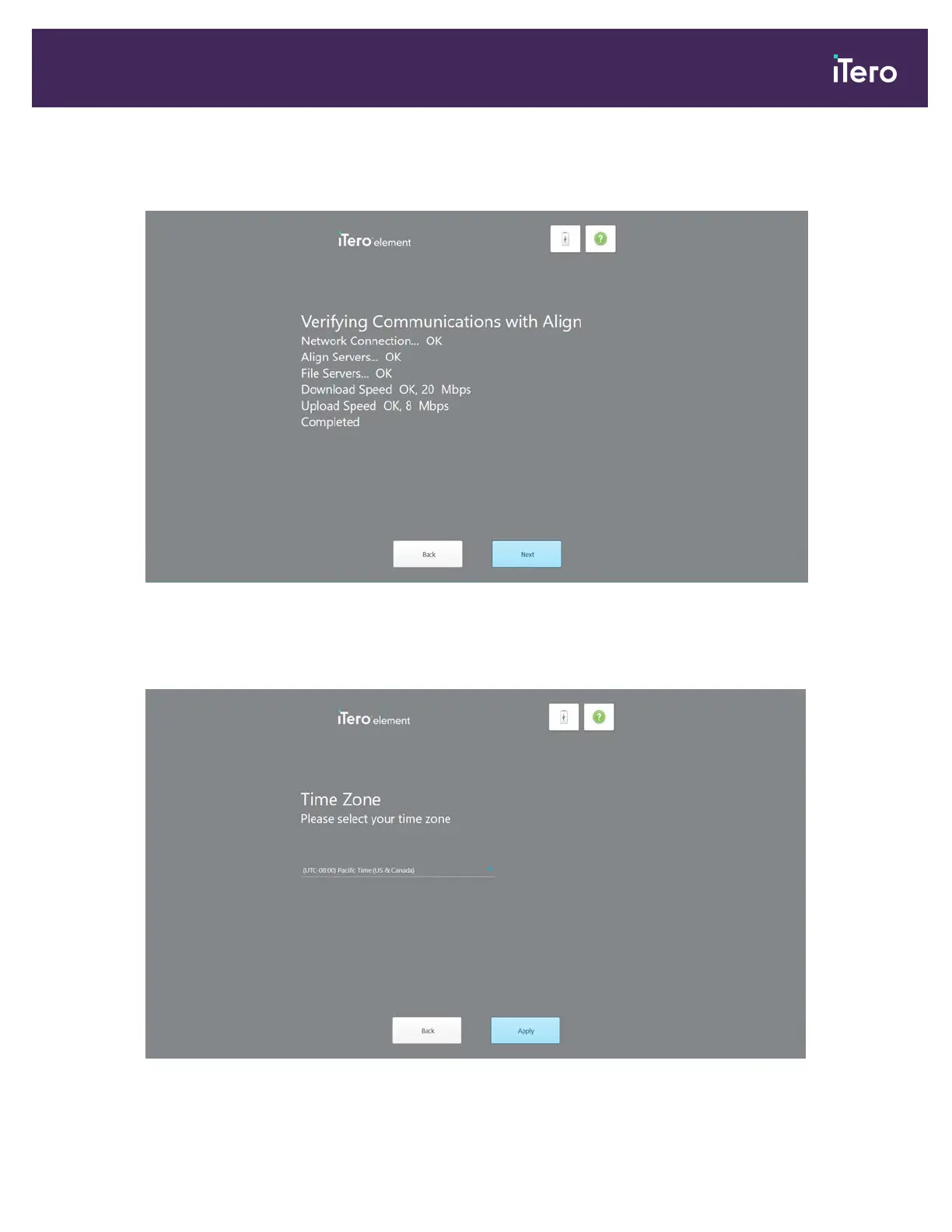

Figure 16: Verifying the communication with Align

6. When the verification is complete, tap Next.

The Time Zone page is displayed.

Figure 17: Selecting the time zone
