When moving the scanner, carefully wrap the power

cable around the upper handle and then use the upper

handle to push the scanner.

If the scanner needs to be lifted, use the upper handle

and the post.

Do not use the main handle to lift the scanner.

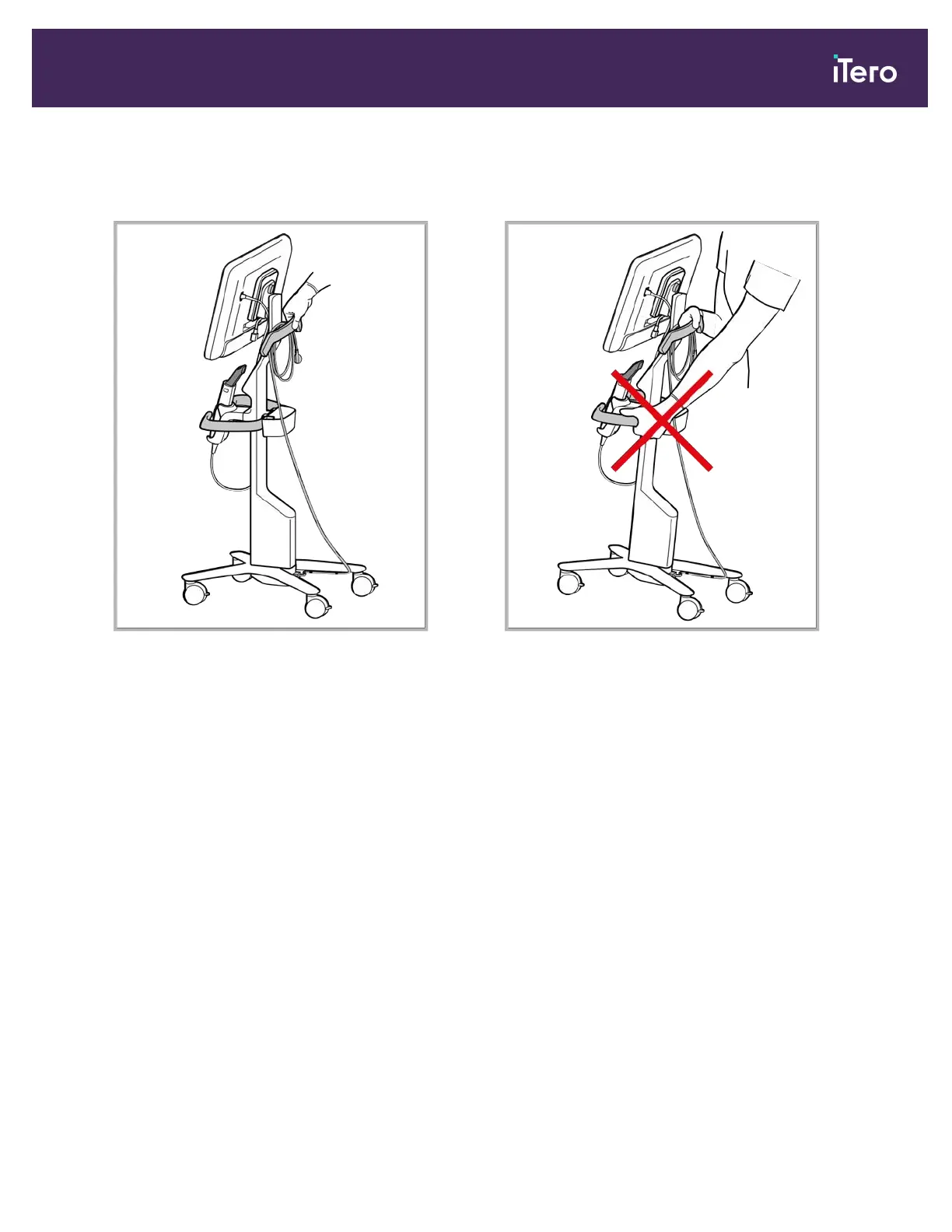

Figure 10: Moving the scanner Figure 11: Do not lift the scanner using the main handle

iTero Element® 5D Plus User manual
