iTero Element 5D Plus - Figure 81: New Scan Window - Editing a Patient; Figure 82: Edit Patient Window and Update Button

To Next Page

To Previous Page

In the Patient area, tap .

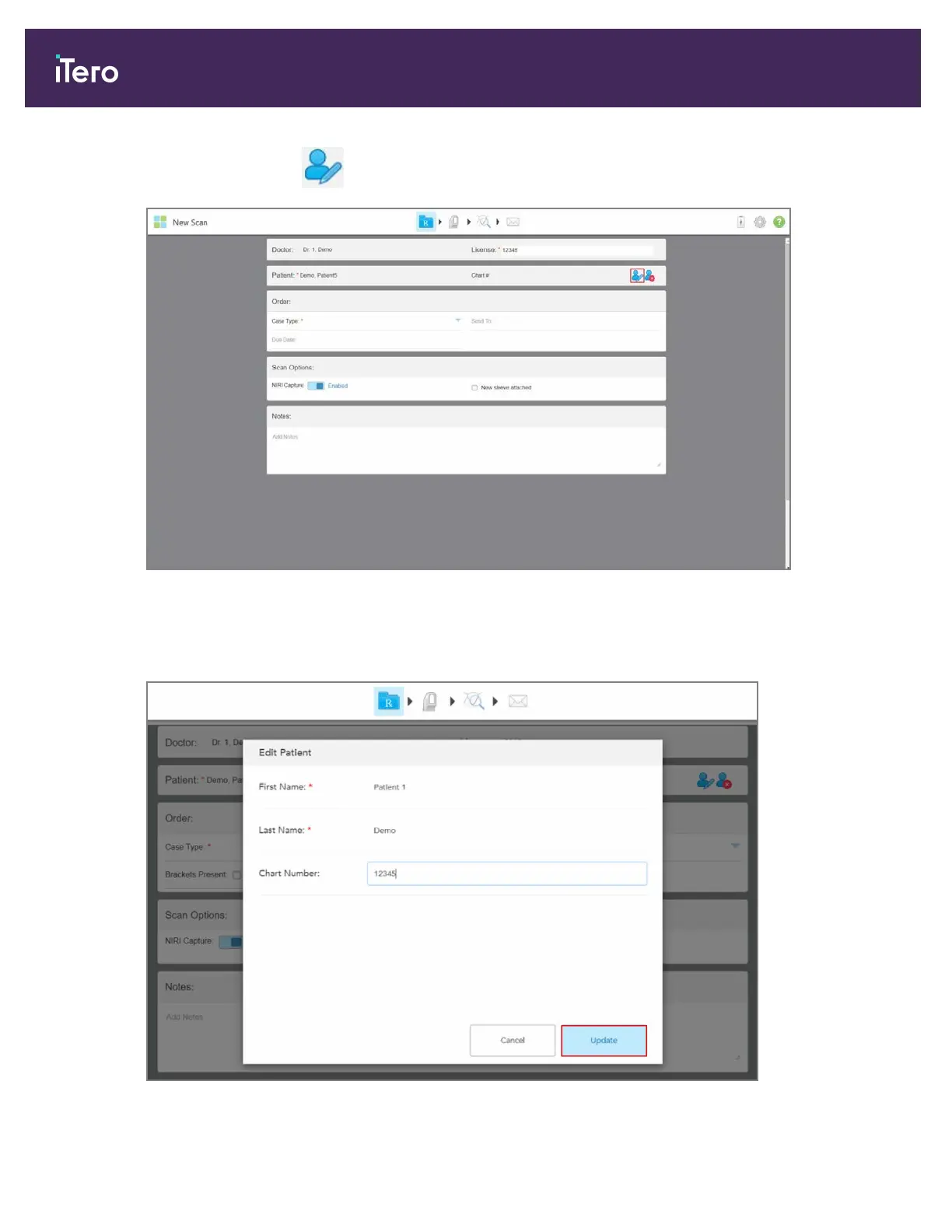

Figure 81: New Scan window – editing a patient

The Edit Patient window is displayed.

3. Edit the patient’s details as required and then tap Update.

Figure 82: Edit Patient window and Update button
