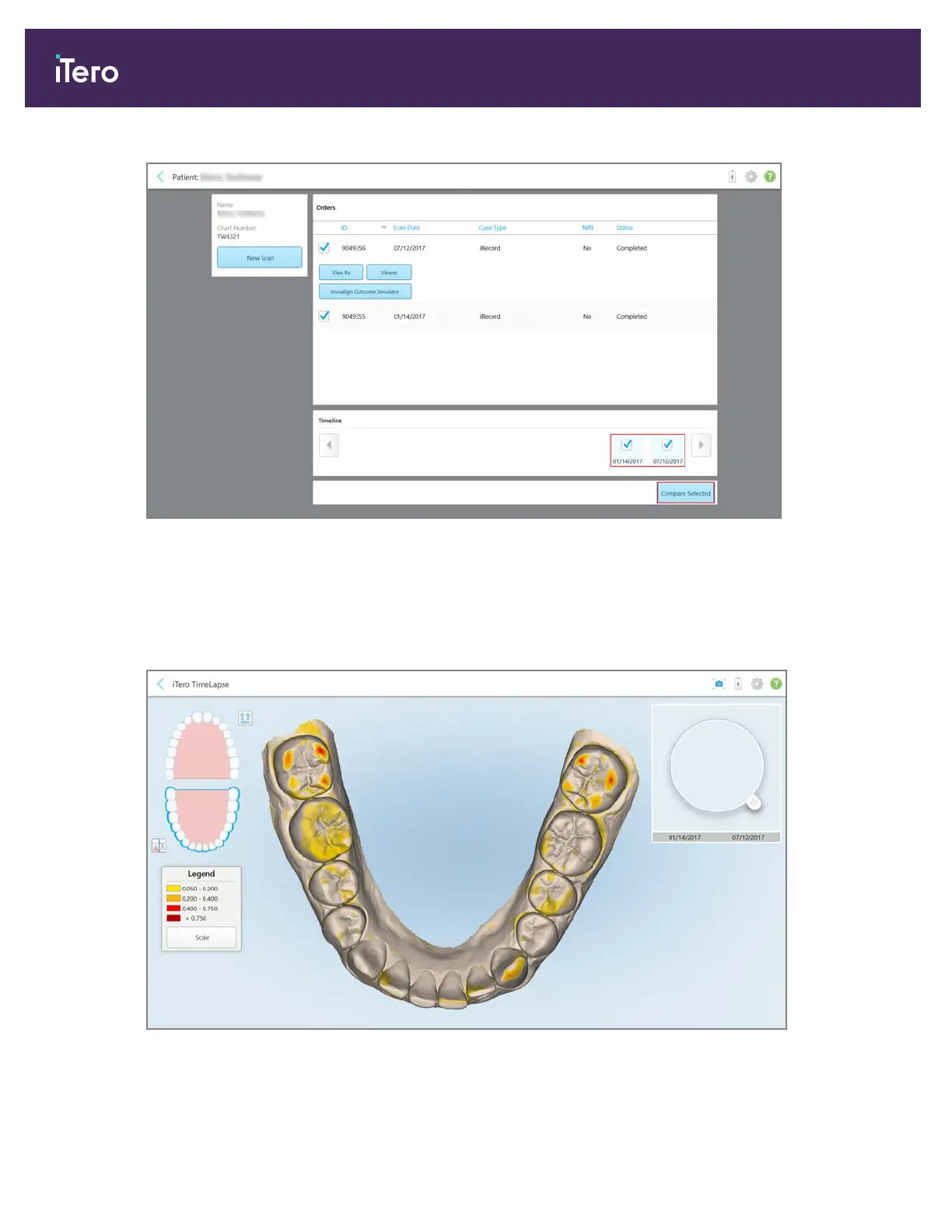

Figure 133: iTero TimeLapse – selecting the scans to compare

3. Tap the Compare Selected button to compare and analyze the scans.

The iTero TimeLapse window is displayed, highlighting the areas with changes between the scans. The darker

the color, the bigger the change between the scans, as displayed in the legend (scale measurements are in

millimeters).

Figure 134: iTero TimeLapse window showing the highlighted changes between the scans

Note: Changes are highlighted only when the scans are displayed in monochrome mode.
