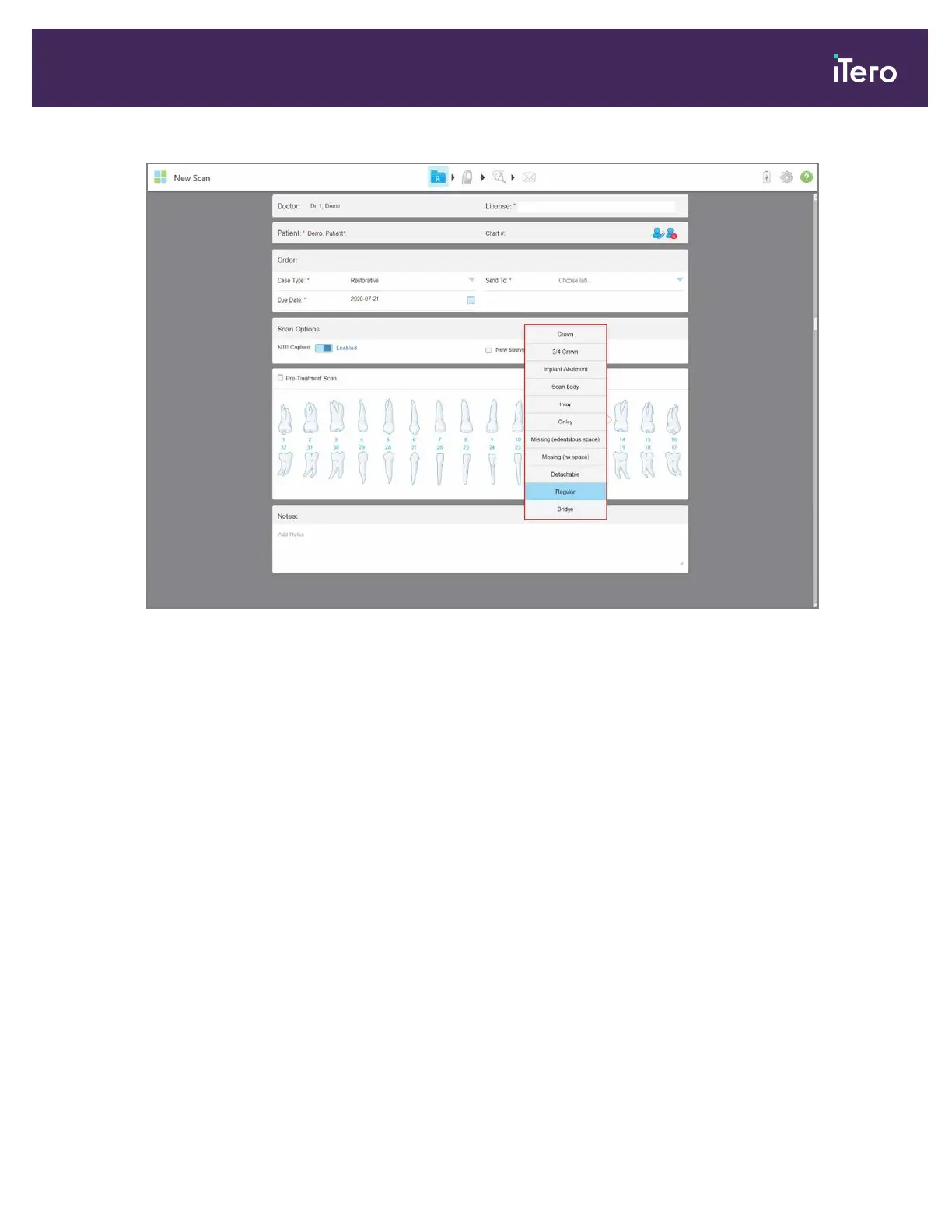

Figure 89: List of restorative treatment options

The list of treatment options is the same for all teeth, except for the following:

Inlay and Onlay: Relevant only for the molars and premolars

Veneer: Relevant only for the incisors and the premolars

4. Select the required treatment option, for example, Crown.

You are prompted to select the settings for the selected treatment option.
