3.6.3.3 Licenses

Tap the Licenses button to view a list of third-party software components installed on the scanner and then tap to

return to the Settings window.

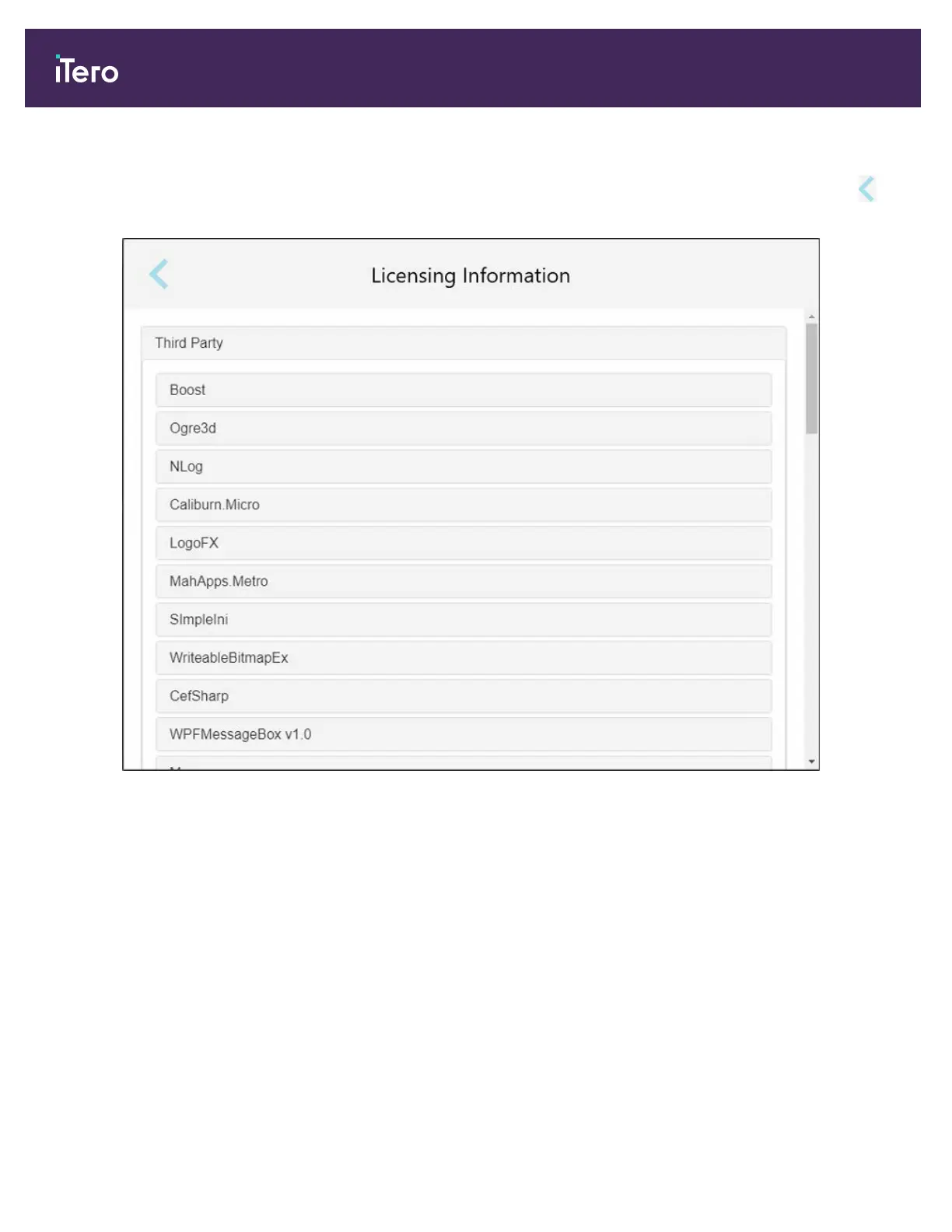

Figure 63: Licensing Information window
