3.6.3.4 System information

Tap the System Information button to view details about the software versions currently installed and the hardware

serial numbers and ID, and then tap to return to the Settings window.

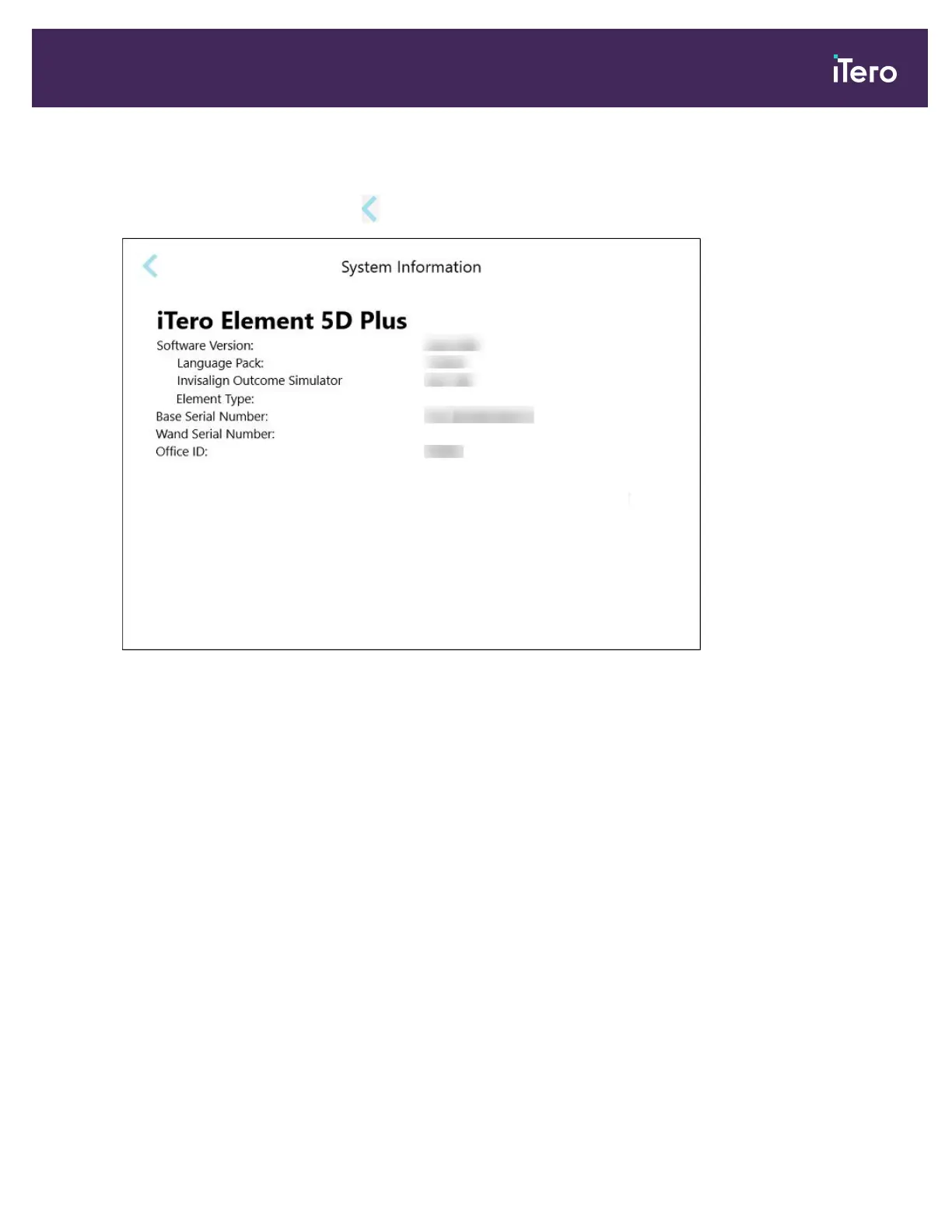

Figure 64: System Information window

3.6.3.5 Sync configuration

Tap the Sync Configuration button to synchronize any new updates from the server, for example, new software

options.

3.6.3.6 Export settings

You can define how long exported files should be kept before being deleted. In addition, you can view the local

network address of the exported files, in boldface letters (starting with “\\”). This address is accessible from any

computer within the local network.

Note: If required, you can export the files at any time from MyiTero.
